PRODUCT DESCRIPTION

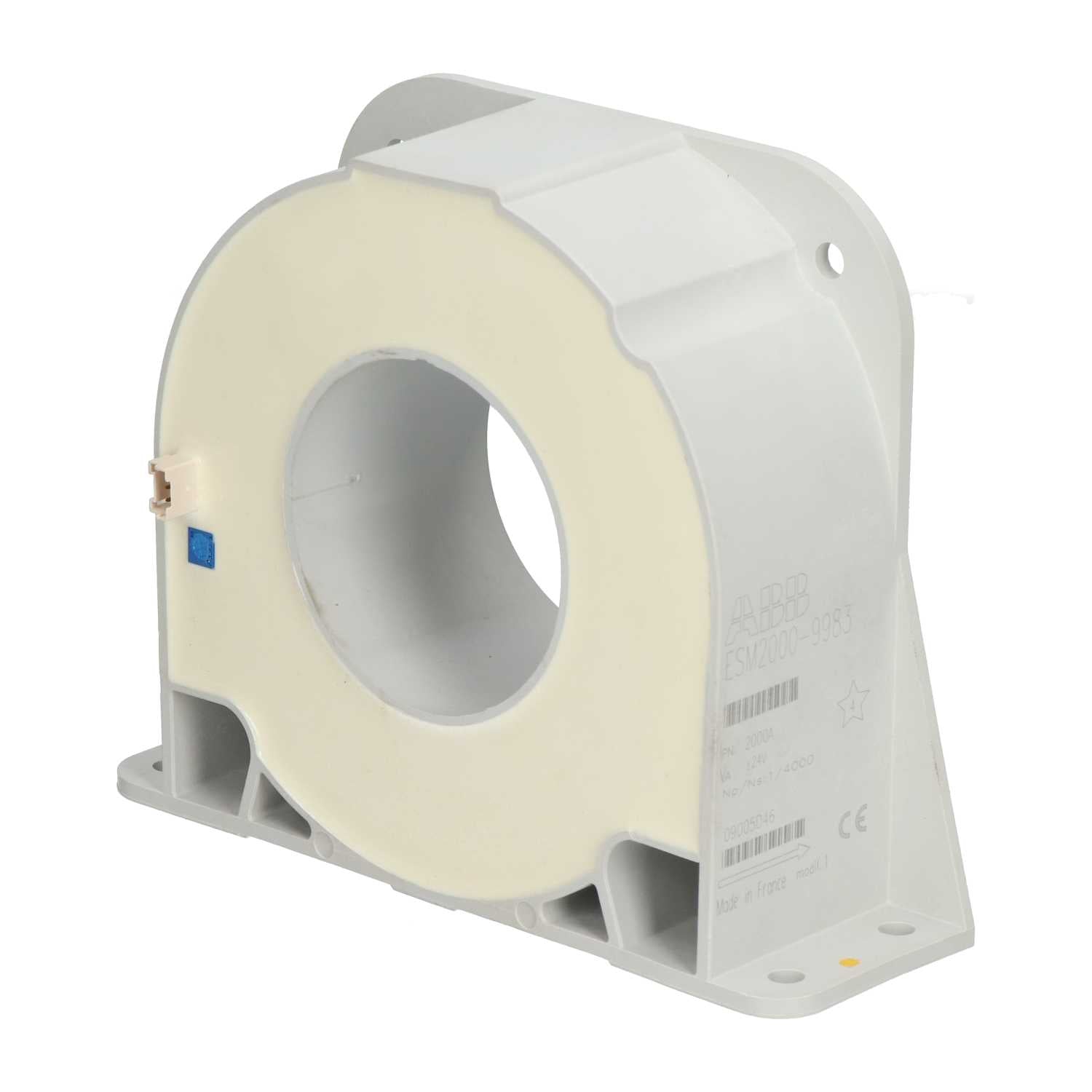

ASEA BROWN BOVERI ESM2000-9983 - Energy Monitoring Module
The ASEA BROWN BOVERI ESM2000-9983 is an industrial energy monitoring module engineered for comprehensive power quality analysis and energy management within industrial and commercial facilities. This unit provides real-time measurement of critical electrical parameters, facilitating optimization of energy consumption, demand management, and proactive maintenance. It integrates into existing control architectures for precise data acquisition and system-wide energy oversight.
Technical Specifications:
- SERIES/FAMILY: ESM2000 Series
- COMPONENT TYPE: Energy Monitoring Module
- ELECTRICAL SPECS:
- MEASUREMENT VOLTAGE INPUT: Typically 100-690VAC (Line-to-Line), 3-Phase, 4-Wire systems
- MEASUREMENT CURRENT INPUT: Requires external Current Transformers (CTs), typically 1A or 5A secondary input
- MEASURED PARAMETERS: Voltage (L-L, L-N), Current, Active Power (kW), Reactive Power (kVAR), Apparent Power (kVA), Energy (kWh, kVARh), Power Factor, Frequency, Harmonics (THD)
- FREQUENCY: 50/60 Hz
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Compact DIN Rail Mount or Panel Mount
- DIMENSIONS: Varies by specific variant, designed for integration within industrial control enclosures
- INTERFACE/CONTROL:
- COMMUNICATION PROTOCOL: Typically Modbus RTU (RS-485) Modbus TCP/IP or EtherNet/IP possible for advanced variants
- I/O: Digital Inputs for status monitoring, Digital Outputs for alarm signaling or basic control (variant dependent)
- FEEDBACK: Real-time electrical parameter data transmitted via communication interface
- ENVIRONMENTAL/MOUNTING:
- IP RATING: Typically IP20 (for indoor panel installation)
- COOLING METHOD: Passive Convection
- MOUNTING STYLE: DIN Rail Mount or Panel Mount
- COMPATIBILITY/APPLICATION: Integration with SCADA systems, Building Management Systems (BMS), Energy Management Systems (EMS), Power Distribution Units (PDUs), Motor Control Centers (MCCs), and industrial automation platforms for energy optimization, power quality analysis, and predictive maintenance.
