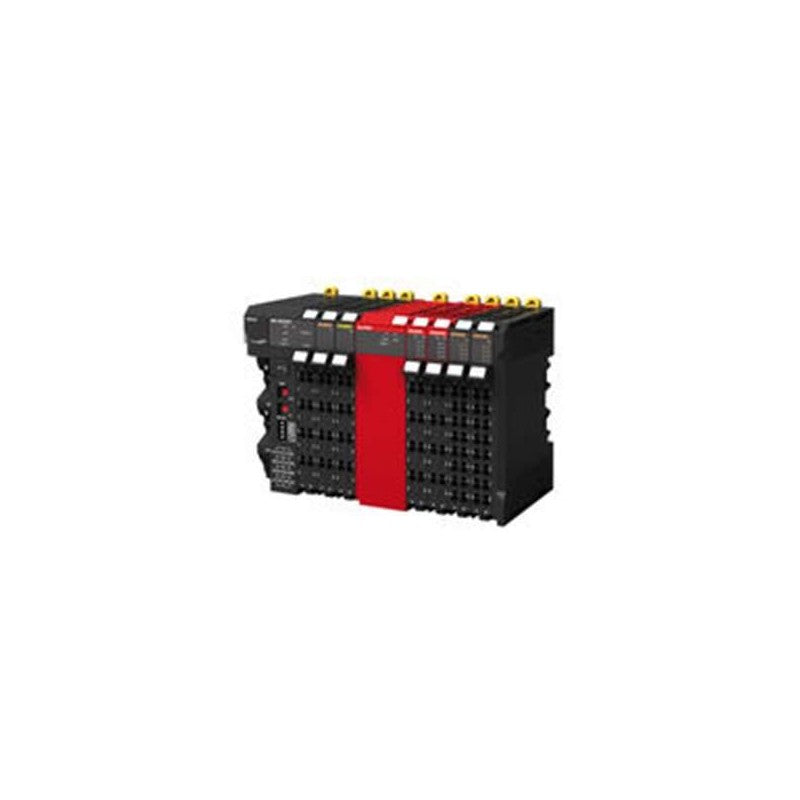

OMRON - NX-AD3604 - PLC Expansion Modules
NX-AD3604 OMRON

OMRON
Condition
 New Sealed

The product is an item that has never been used and was obtained through a surplus supplier.

  • Never used in a production environment, but it may have been powered on for testing
  • No visible signs of handling, use, or damage
  • Includes the original packaging, if applicable
  • May or may not have the original manufacturer's seal on the box. The original manufacturer's warranty may not be applicable.
  • Includes all hardware and accessories present in the factory new version of the product
  • May or may not include the instructions present in the factory new version of the product
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers
  • Products may vary by country of origin and by language used on the packaging
  • The product packaging may show signs of shelf wear
 New BAS

The product is an item that has never been used and has been sourced from an excess supplier.

  • Never used in a production environment, but it may have been powered on for testing.
  • The product may show slight superficial signs of handling, but no signs of use or damage.
  • It may or may not have the original packaging. If the original packaging is not available, the product will generally be packaged in aftermarket packaging or branded BAS.
  • Hardware, accessories, or instructions present in the factory new version of the product may be missing. The manufacturer's warranty may not apply.
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers.
  • Products may vary by country of origin and by language used on the packaging.
  • The packaging may contain markings not from the original manufacturer (OEM).
 New Fast Delivery

The product is an item that has never been used and was obtained through a surplus supplier.

  • Never used in a production environment, but it may have been powered on for testing
  • No visible signs of handling, use, or damage
  • Includes the original packaging, if applicable
  • May or may not have the original manufacturer's seal on the box. The original manufacturer's warranty may not be applicable.
  • Includes all hardware and accessories present in the factory new version of the product
  • May or may not include the instructions present in the factory new version of the product
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers
  • Products may vary by country of origin and by language used on the packaging
  • The product packaging may show signs of shelf wear
  • Faster shipping
Request information for NX-AD3604 OMRON

PRODUCT DESCRIPTION

OMRON NX-AD3604 - Sysmac NX Series Analog Input Module

This is a high-speed, high-resolution analog input module from the OMRON Sysmac NX series, designed for precise data acquisition in industrial automation systems. It integrates seamlessly into the EtherCAT-based NX bus, providing deterministic real-time sensor data to the NX CPU for advanced process control, quality monitoring, and data logging applications.

Technical Specifications:

  • SERIES/FAMILY: Sysmac NX Series
  • COMPONENT TYPE: Analog Input Module
  • ELECTRICAL SPECS:
    • INPUT CHANNELS: 6 differential inputs
    • RESOLUTION: 16-bit
    • INPUT RANGES: -10V to +10V, 0-20mA, 4-20mA
    • CONVERSION SPEED: 250 µs per channel (typical)
    • INPUT IMPEDANCE: 1M Ohm (voltage), 250 Ohm (current)
  • INTERFACE/CONTROL:
    • SYSTEM BUS: NX Bus (EtherCAT-based)
    • DATA TRANSFER: Cyclic data transfer for real-time process variables
    • ISOLATION: Channel-to-channel and channel-to-system isolation
  • ENVIRONMENTAL/MOUNTING:
    • IP RATING: IP20
    • COOLING METHOD: Natural convection
    • MOUNTING STYLE: DIN rail mounting
    • OPERATING TEMPERATURE: 0 to 55 degrees Celsius
  • COMPATIBILITY/APPLICATION:
    • COMPATIBILITY: OMRON Sysmac NX Series CPU Units and I/O Couplers
    • APPLICATIONS: Precision process monitoring, sensor data acquisition, quality control, test and measurement systems, machine condition monitoring

1 year warranty

HS CODE

853890

DELIVERY TIME

9 working days

Price excluding VAT

Return conditions

You can return the purchased product according to the Terms and Conditions

Warranty

Automantion Service Srl is NOT an official distributor of the manufacturer. The manufacturer's warranty does not apply. Terms and conditions
