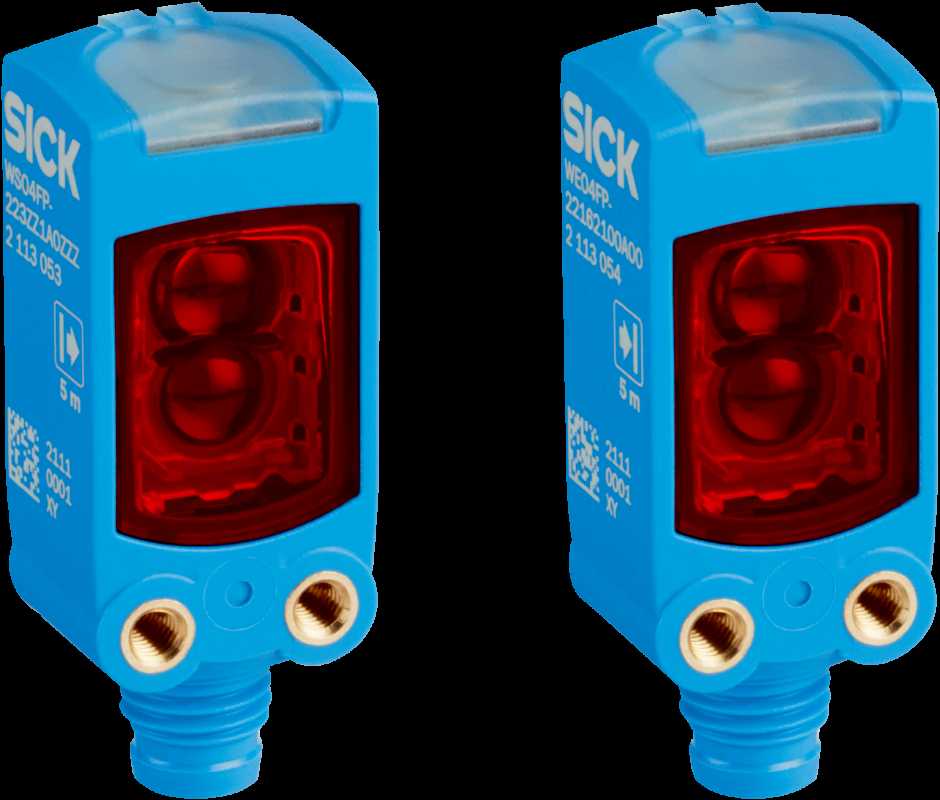

SICK - 1116537 - Photoelectric Sensors
1116537 SICK

SICK
Condition
 New Sealed

The product is an item that has never been used and was obtained through a surplus supplier.

  • Never used in a production environment, but it may have been powered on for testing
  • No visible signs of handling, use, or damage
  • Includes the original packaging, if applicable
  • May or may not have the original manufacturer's seal on the box. The original manufacturer's warranty may not be applicable.
  • Includes all hardware and accessories present in the factory new version of the product
  • May or may not include the instructions present in the factory new version of the product
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers
  • Products may vary by country of origin and by language used on the packaging
  • The product packaging may show signs of shelf wear
 New BAS

The product is an item that has never been used and has been sourced from an excess supplier.

  • Never used in a production environment, but it may have been powered on for testing.
  • The product may show slight superficial signs of handling, but no signs of use or damage.
  • It may or may not have the original packaging. If the original packaging is not available, the product will generally be packaged in aftermarket packaging or branded BAS.
  • Hardware, accessories, or instructions present in the factory new version of the product may be missing. The manufacturer's warranty may not apply.
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers.
  • Products may vary by country of origin and by language used on the packaging.
  • The packaging may contain markings not from the original manufacturer (OEM).
 New Fast Delivery

The product is an item that has never been used and was obtained through a surplus supplier.

  • Never used in a production environment, but it may have been powered on for testing
  • No visible signs of handling, use, or damage
  • Includes the original packaging, if applicable
  • May or may not have the original manufacturer's seal on the box. The original manufacturer's warranty may not be applicable.
  • Includes all hardware and accessories present in the factory new version of the product
  • May or may not include the instructions present in the factory new version of the product
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers
  • Products may vary by country of origin and by language used on the packaging
  • The product packaging may show signs of shelf wear
  • Faster shipping
Request information for 1116537 SICK

PRODUCT DESCRIPTION

SICK 1116537 - Safety Light Curtain

The SICK deTec4 Core is a Type 4 electro-sensitive protective equipment (ESPE) designed for personnel and access protection in industrial environments. This safety light curtain system provides a 150 mm protective field with 30 mm resolution for hazardous point safeguarding, integrating directly into machine safety circuits via OSSD outputs. It is engineered for applications requiring high safety integrity levels, such as robotic cells, automated assembly lines, and material handling systems.

Technical Specifications:

  • SERIES/FAMILY: deTec4 Core
  • COMPONENT TYPE: Safety Light Curtain (Sender/Receiver Pair)
  • ELECTRICAL SPECS:
    • NOMINAL VOLTAGE: 24 VDC
    • OPERATING VOLTAGE RANGE: 19.2 VDC to 28.8 VDC
    • CURRENT CONSUMPTION: 50 mA (Sender), 70 mA (Receiver)
  • MECHANICAL/PHYSICAL:
    • PROTECTIVE FIELD HEIGHT: 150 mm
    • RESOLUTION: 30 mm (Finger Protection)
    • OPERATING RANGE: 0.3 m to 17 m
    • HOUSING MATERIAL: Aluminum Extruded Profile
    • END CAPS MATERIAL: Die-cast Zinc
  • INTERFACE/CONTROL:
    • OUTPUTS: 2 x OSSD (PNP, Switching to High)
    • OUTPUT CURRENT: 500 mA (Maximum)
    • RESPONSE TIME: 10 ms (Typical for 150 mm height)
    • CONNECTION TYPE: M12, 5-pin Male (Sender), M12, 5-pin Female (Receiver)
    • INDICATORS: LEDs for Alignment, Operating State, Error
  • ENVIRONMENTAL/MOUNTING:
    • IP RATING: IP65, IP67 (EN 60529)
    • OPERATING TEMPERATURE: -30 °C to +55 °C
    • STORAGE TEMPERATURE: -30 °C to +70 °C
    • COOLING METHOD: Passive Convection
    • MOUNTING STYLE: Swivel Mount, Side Bracket, or Standard Bracket (Accessories Dependent)
  • COMPATIBILITY/APPLICATION:
    • SAFETY STANDARDS: Type 4 (IEC 61496-1/-2), PL e (EN ISO 13849-1), SIL3 (IEC 61508)
    • TARGET SYSTEMS: Safety Relays, Safety PLCs
    • MACHINE TYPES: Automated Production Lines, Robotic Workstations, Presses, Packaging Machinery, Material Handling Systems

1 year warranty

HS CODE

85365019

DELIVERY TIME

25 working days
