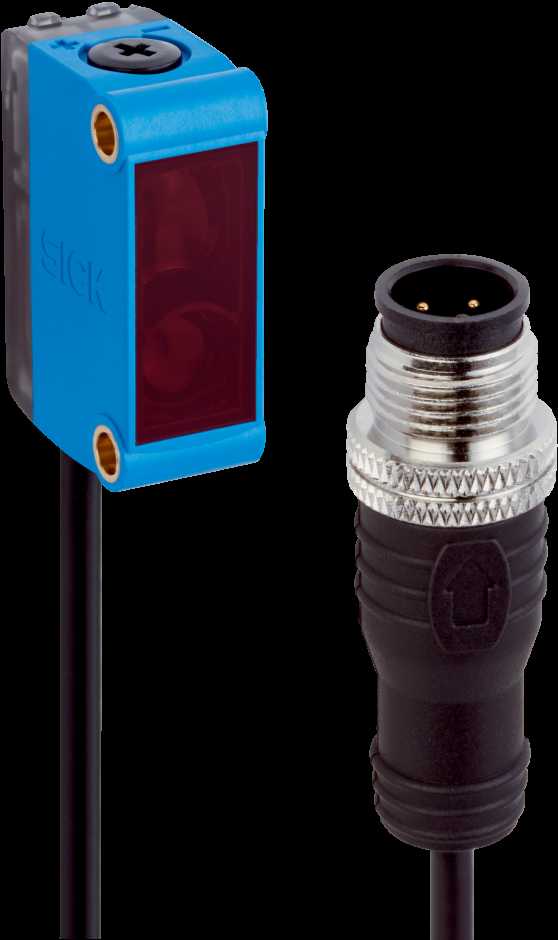

SICK - 1122654 - Photoelectric Sensors
1122654 SICK

SICK
Condition
 New Sealed

The product is an item that has never been used and was obtained through a surplus supplier.

  • Never used in a production environment, but it may have been powered on for testing
  • No visible signs of handling, use, or damage
  • Includes the original packaging, if applicable
  • May or may not have the original manufacturer's seal on the box. The original manufacturer's warranty may not be applicable.
  • Includes all hardware and accessories present in the factory new version of the product
  • May or may not include the instructions present in the factory new version of the product
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers
  • Products may vary by country of origin and by language used on the packaging
  • The product packaging may show signs of shelf wear
 New BAS

The product is an item that has never been used and has been sourced from an excess supplier.

  • Never used in a production environment, but it may have been powered on for testing.
  • The product may show slight superficial signs of handling, but no signs of use or damage.
  • It may or may not have the original packaging. If the original packaging is not available, the product will generally be packaged in aftermarket packaging or branded BAS.
  • Hardware, accessories, or instructions present in the factory new version of the product may be missing. The manufacturer's warranty may not apply.
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers.
  • Products may vary by country of origin and by language used on the packaging.
  • The packaging may contain markings not from the original manufacturer (OEM).
 New Fast Delivery

The product is an item that has never been used and was obtained through a surplus supplier.

  • Never used in a production environment, but it may have been powered on for testing
  • No visible signs of handling, use, or damage
  • Includes the original packaging, if applicable
  • May or may not have the original manufacturer's seal on the box. The original manufacturer's warranty may not be applicable.
  • Includes all hardware and accessories present in the factory new version of the product
  • May or may not include the instructions present in the factory new version of the product
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers
  • Products may vary by country of origin and by language used on the packaging
  • The product packaging may show signs of shelf wear
  • Faster shipping
Request information for 1122654 SICK

PRODUCT DESCRIPTION

SICK 1122654 - Safety Light Curtain Receiver

The SICK 1122654 is a deTec4 Core series safety light curtain receiver, classified as Type 4 electro-sensitive protective equipment (ESPE) per IEC 61496. This device provides reliable optical personnel detection for finger and hand protection, integrating directly into safety control circuits via redundant OSSD outputs. It is specifically engineered for safeguarding hazardous points and access areas on industrial machinery, including robotic work cells, presses, and automated assembly lines, ensuring compliance with Performance Level e (PL e) and Safety Integrity Level 3 (SIL3) requirements.

Technical Specifications:

  • SERIES/FAMILY: deTec4 Core
  • COMPONENT TYPE: Safety Light Curtain Receiver
  • ELECTRICAL SPECS:
    • SUPPLY VOLTAGE: 24 VDC (19.2 VDC to 28.8 VDC)
    • CURRENT CONSUMPTION: 80 mA (typical, varies with protective field height)
    • OUTPUTS: 2 x OSSD (PNP, switching to high)
  • MECHANICAL/PHYSICAL:
    • RESOLUTION: Available in 14 mm (finger protection) or 30 mm (hand protection)
    • PROTECTIVE FIELD HEIGHT: Varies by specific model variant
    • OPERATING RANGE: 0.3 m to 15 m
    • HOUSING MATERIAL: Aluminum extruded profile
  • INTERFACE/CONTROL:
    • CONNECTION TYPE: M12, 8-pin male connector
    • FEEDBACK: OSSD (Output Signal Switching Device) for direct connection to safety relays or PLCs
    • INDICATORS: Status LEDs for alignment and operational status
  • ENVIRONMENTAL/MOUNTING:
    • IP RATING: IP65, IP67
    • OPERATING TEMPERATURE: -30 °C to +55 °C
    • COOLING METHOD: Passive convection
    • MOUNTING STYLE: Standard swivel mounts or side brackets (accessories)
    • COMPATIBILITY/APPLICATION: Machine safeguarding, access protection, hazardous point protection, robotic work cells, presses, packaging machinery, assembly lines, material handling systems.

1 year warranty

HS CODE

85365019

DELIVERY TIME

25 working days

Price excluding VAT

Return conditions

You can return the purchased product according to the Terms and Conditions

Warranty

Automantion Service Srl is NOT an official distributor of the manufacturer. The manufacturer's warranty does not apply. Terms and conditions
