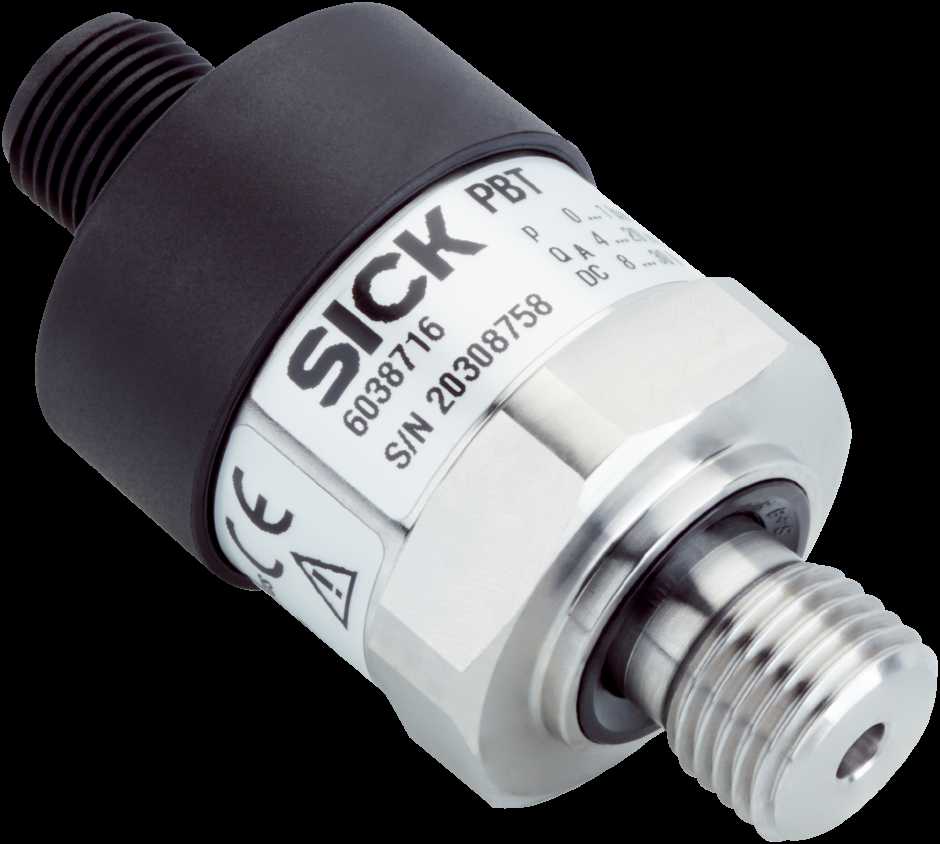

SICK - 6038648 - Pressure Sensors
6038648 SICK

SICK
Condition
 New Sealed

The product is an item that has never been used and was obtained through a surplus supplier.

  • Never used in a production environment, but it may have been powered on for testing
  • No visible signs of handling, use, or damage
  • Includes the original packaging, if applicable
  • May or may not have the original manufacturer's seal on the box. The original manufacturer's warranty may not be applicable.
  • Includes all hardware and accessories present in the factory new version of the product
  • May or may not include the instructions present in the factory new version of the product
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers
  • Products may vary by country of origin and by language used on the packaging
  • The product packaging may show signs of shelf wear
 New BAS

The product is an item that has never been used and has been sourced from an excess supplier.

  • Never used in a production environment, but it may have been powered on for testing.
  • The product may show slight superficial signs of handling, but no signs of use or damage.
  • It may or may not have the original packaging. If the original packaging is not available, the product will generally be packaged in aftermarket packaging or branded BAS.
  • Hardware, accessories, or instructions present in the factory new version of the product may be missing. The manufacturer's warranty may not apply.
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers.
  • Products may vary by country of origin and by language used on the packaging.
  • The packaging may contain markings not from the original manufacturer (OEM).
 New Fast Delivery

The product is an item that has never been used and was obtained through a surplus supplier.

  • Never used in a production environment, but it may have been powered on for testing
  • No visible signs of handling, use, or damage
  • Includes the original packaging, if applicable
  • May or may not have the original manufacturer's seal on the box. The original manufacturer's warranty may not be applicable.
  • Includes all hardware and accessories present in the factory new version of the product
  • May or may not include the instructions present in the factory new version of the product
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers
  • Products may vary by country of origin and by language used on the packaging
  • The product packaging may show signs of shelf wear
  • Faster shipping
Request information for 6038648 SICK

PRODUCT DESCRIPTION

SICK 6038648 - Optical Displacement Sensor

This SICK OD2000 series optical displacement sensor provides precise, non-contact distance and position measurement using laser triangulation technology. Engineered for industrial environments, it delivers high-resolution analog and discrete switching outputs for critical quality control, object profiling, and automated positioning tasks. Its robust design ensures reliable performance in applications such as thickness measurement, diameter verification, and web guiding.

Technical Specifications:

  • SERIES/FAMILY: OD2000
  • COMPONENT TYPE: Optical Displacement Sensor
  • ELECTRICAL SPECS:
    • SUPPLY VOLTAGE: 15 V DC ... 30 V DC
    • CURRENT CONSUMPTION: Max. 100 mA (without load)
  • MECHANICAL/PHYSICAL:
    • MEASURING RANGE: 26 mm ... 146 mm (120 mm span)
    • RESOLUTION: 10 µm
    • REPEATABILITY: 10 µm
    • LINEARITY: +/- 0.1 % of measuring range
    • LIGHT SOURCE: Red laser, Class 2 (EN 60825-1:2014)
    • LASER SPOT DIAMETER: 60 µm (at optimal distance)
    • HOUSING MATERIAL: Die-cast zinc
  • INTERFACE/CONTROL:
    • ANALOG OUTPUT: 1 x 0 V ... 10 V or 1 x 4 mA ... 20 mA (configurable)
    • SWITCHING OUTPUTS: 2 x PNP (configurable)
    • CONNECTION: M12, 8-pin male connector
  • ENVIRONMENTAL/MOUNTING:
    • IP RATING: IP67
    • OPERATING TEMPERATURE: -10 °C ... +50 °C
    • COOLING METHOD: Convection
    • MOUNTING STYLE: Through-hole, compact rectangular housing
  • COMPATIBILITY/APPLICATION:
    • TARGET SYSTEMS: Industrial automation, quality control systems, robotics, material handling
    • SPECIFIC MACHINE TYPES: Packaging machines, assembly lines, CNC machines, web processing equipment, inspection stations

1 year warranty

HS CODE

85365019

DELIVERY TIME

25 working days

Price excluding VAT

Return conditions

You can return the purchased product according to the Terms and Conditions

Warranty

Automantion Service Srl is NOT an official distributor of the manufacturer. The manufacturer's warranty does not apply. Terms and conditions
