PRODUCT DESCRIPTION

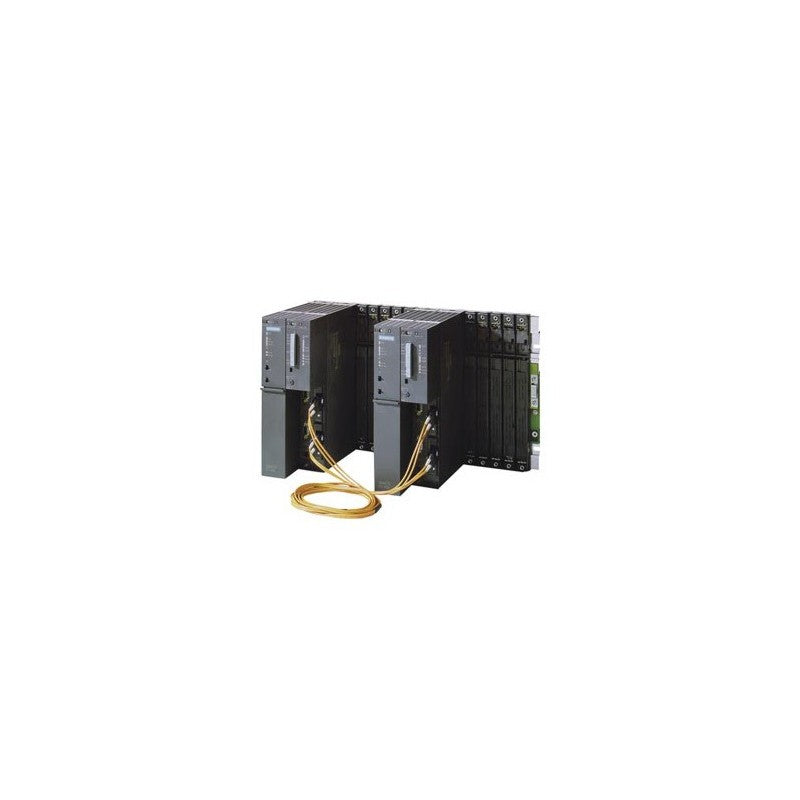

SIEMENS 6ES7400-0HR53-4AB0 - SIMATIC S7-400H Universal Rack 2
The SIEMENS SIMATIC S7-400H Universal Rack 2 (UR2-H) serves as the foundational backplane for high-availability, fault-tolerant programmable logic controller systems. It provides the necessary infrastructure for redundant S7-400H CPUs and associated I/O modules, ensuring continuous operation in critical industrial processes. This component is specifically designed for applications requiring maximum uptime, such as process control, power generation, and large-scale manufacturing automation.
Technical Specifications:
- SERIES/FAMILY: SIMATIC S7-400H
- COMPONENT TYPE: Universal Rack 2 (UR2-H) for High-Availability Systems
- ELECTRICAL SPECS:
- POWER SUPPLY: External via PS 400 series power supply modules (e.g., 120/230VAC or 24VDC input)
- POWER CONSUMPTION: Dependent on installed modules and power supply unit
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Rack-mounted chassis
- SLOTS: 18 slots (typically 2 for redundant CPUs, 2 for synchronization modules, 14 for interface and I/O modules)
- MOUNTING: Horizontal mounting in control cabinets
- INTERFACE/CONTROL:
- BACKPLANE BUS: S7-400 high-speed synchronous backplane bus
- REDUNDANCY SUPPORT: Integrated for S7-400H CPUs and synchronization modules
- COMMUNICATION INTERFACE: Provides backplane bus for communication modules (e.g., CP 443-1 for Industrial Ethernet/PROFINET, CP 441 for point-to-point)
- ENVIRONMENTAL/MOUNTING:
- IP RATING: Dependent on external enclosure
- COOLING METHOD: Passive convection
- OPERATING TEMPERATURE: 0 to 60 degrees Celsius
- MOUNTING STYLE: Horizontal, panel or DIN rail mounting within an enclosure
- COMPATIBILITY/APPLICATION:
- COMPATIBILITY: SIEMENS SIMATIC S7-400H CPUs, I/O modules, and communication processors
- APPLICATION: High-availability process control, safety-critical systems, power generation, chemical industry, oil & gas, large-scale manufacturing, infrastructure automation requiring fault tolerance
