PRODUCT DESCRIPTION

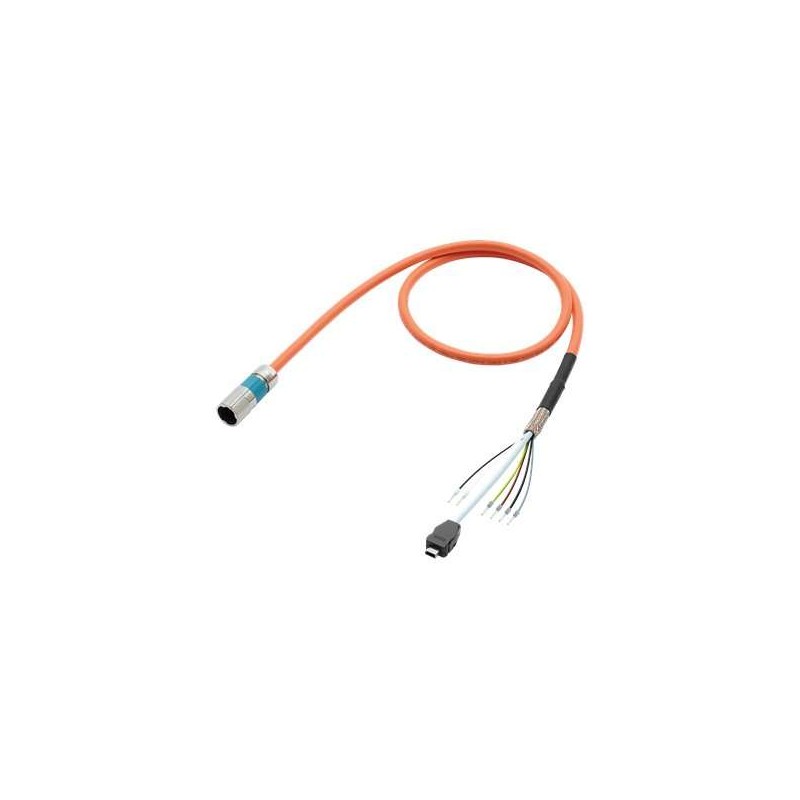

SIEMENS 6FX8002-8QN08-1CA0 - DRIVE-CLiQ System Cable
This component is an 8-meter SIEMENS SINAMICS DRIVE-CLiQ system cable, designed for reliable digital communication within the SINAMICS S120 drive system architecture. It facilitates high-speed, real-time data exchange between SINAMICS Control Units, Motor Modules, and compatible motors or sensor modules, enabling precise control and diagnostic functions. This cable establishes the critical digital interface for synchronized motion control applications in industrial automation.
Technical Specifications:
- SERIES/FAMILY: SINAMICS S120
- COMPONENT TYPE: DRIVE-CLiQ System Cable
- ELECTRICAL SPECS: SIGNAL INTEGRITY: Optimized for high-speed digital signal transmission VOLTAGE RATING: Designed for low-voltage signal levels inherent to DRIVE-CLiQ protocol.
- MECHANICAL/PHYSICAL: CABLE LENGTH: 8 meters CABLE CONSTRUCTION: Shielded twisted pair CONNECTOR TYPE: Standard DRIVE-CLiQ connectors, straight configuration on both ends.
- INTERFACE/CONTROL: COMMUNICATION PROTOCOL: DRIVE-CLiQ FUNCTION: Real-time digital data exchange for setpoints, actual values, and diagnostics FEEDBACK: Supports motor feedback integration.
- ENVIRONMENTAL/MOUNTING: IP RATING: Connectors typically achieve IP67 protection when mated OPERATING TEMPERATURE: -20 to +70 degrees Celsius MOUNTING: Flexible for industrial cable routing.
- COMPATIBILITY/APPLICATION: SINAMICS S120 drive systems, including Control Units, Motor Modules, and motors with integrated DRIVE-CLiQ interfaces applications requiring high-precision, synchronized motion control such as CNC machines, robotics, and material handling systems.
