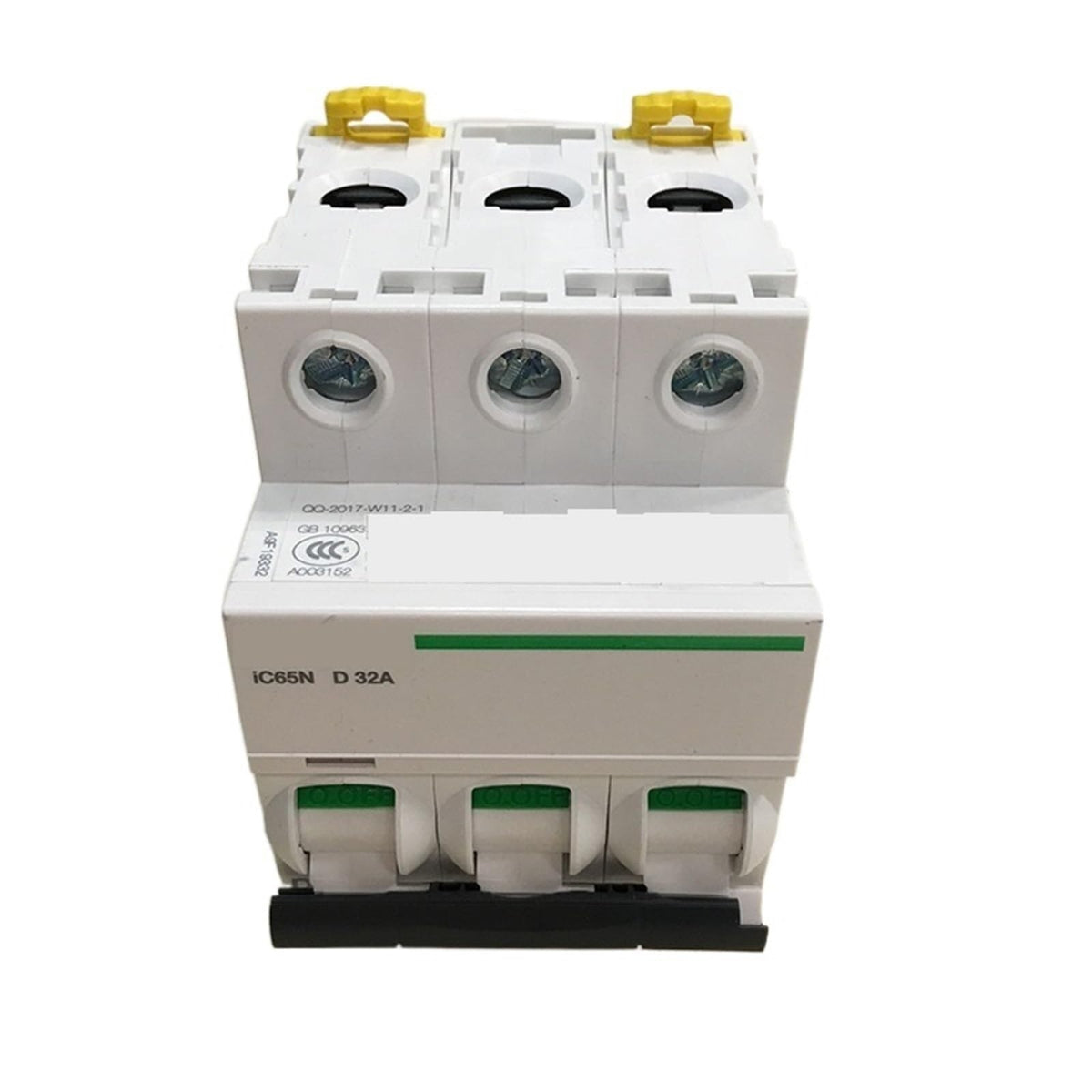

SCHNEIDER ELECTRIC A9F19325 - Miniature Circuit Breaker (MCB)
This device is a 3-pole miniature circuit breaker from the SCHNEIDER ELECTRIC Acti 9 iC60N series, engineered for overcurrent and short-circuit protection in industrial and commercial electrical distribution systems. It provides reliable circuit isolation and fault interruption, critical for safeguarding equipment and personnel in applications such as machinery control panels, building infrastructure, and power distribution units. The unit is designed for modular installation within electrical enclosures.
Technical Specifications:
- SERIES/FAMILY: Acti 9 iC60N
- COMPONENT TYPE: Miniature Circuit Breaker (MCB)
- ELECTRICAL SPECS:
- POLES: 3P
- NOMINAL CURRENT: 25A
- NOMINAL OPERATIONAL VOLTAGE (AC): 230/400V AC, 440V AC
- NOMINAL OPERATIONAL VOLTAGE (DC): 60V DC per pole (180V DC for 3P series connection)
- BREAKING CAPACITY (Icn): 6kA to 10kA at 400V AC (dependent on specific iC60N variant)
- TRIPPING CURVE: Type C (thermal-magnetic trip for general purpose protection)
- FREQUENCY: 50/60 Hz
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Modular, DIN rail mountable
- TERMINAL CAPACITY: Up to 35 mm² (flexible conductor), 50 mm² (rigid conductor)
- INTERFACE/CONTROL:
- INDICATORS: Trip indicator, contact position indicator (visible green/red)
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (terminals), IP40 (enclosure in modular panel)
- MOUNTING: DIN rail (35mm symmetrical)
- OPERATING TEMPERATURE: -35°C to +70°C
- COMPATIBILITY/APPLICATION: Industrial control panels, commercial building electrical distribution, HVAC systems, motor control circuits, general circuit protection in low-voltage installations.
