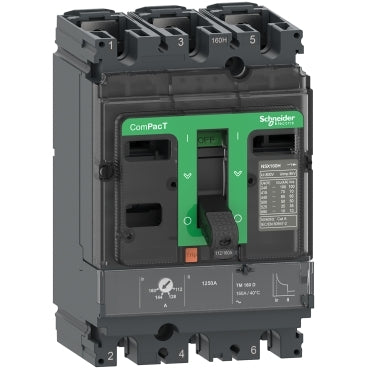

SCHNEIDER ELECTRIC C16N3TM160 - Molded Case Circuit Breaker (MCCB)
The SCHNEIDER ELECTRIC C16N3TM160 is a ComPact NSXm series molded case circuit breaker engineered for electrical distribution systems. It provides essential circuit protection against overloads and short-circuits through an integrated thermal-magnetic trip unit. This device is suitable for industrial and commercial applications requiring reliable power distribution and equipment safeguarding, including feeder circuits, motor protection, and general load protection within switchgear and control panels.
Technical Specifications:
- SERIES/FAMILY: ComPact NSXm
- COMPONENT TYPE: Molded Case Circuit Breaker (MCCB)
- ELECTRICAL SPECS:
- NOMINAL CURRENT (In): 160A
- POLES: 3P (3-pole)
- TRIP UNIT TYPE: Thermal-Magnetic (TM-D)
- BREAKING CAPACITY (Icu): 36kA at 400/415VAC (N rating)
- NOMINAL VOLTAGE (Ue): 200-690VAC
- FREQUENCY: 50/60 Hz
- MECHANICAL/PHYSICAL:
- FRAME SIZE: NSXm 160 Frame
- OPERATION: Toggle handle
- INTERFACE/CONTROL:
- PROTECTION FUNCTIONS: Overload protection (thermal), Short-circuit protection (magnetic)
- TRIP UNIT SETTINGS: Fixed thermal and magnetic thresholds
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP40 (front face with door), IP20 (terminals)
- COOLING METHOD: Natural convection
- MOUNTING STYLE: Fixed, on backplate or DIN rail (with adapter)
- OPERATING TEMPERATURE: -25°C to +70°C
- COMPATIBILITY/APPLICATION:
- APPLICATIONS: Industrial and commercial electrical distribution, motor feeder protection, generator protection, transformer protection, general load protection.
- STANDARDS: IEC 60947-2
