DESCRIPCIÓN DEL PRODUCTO

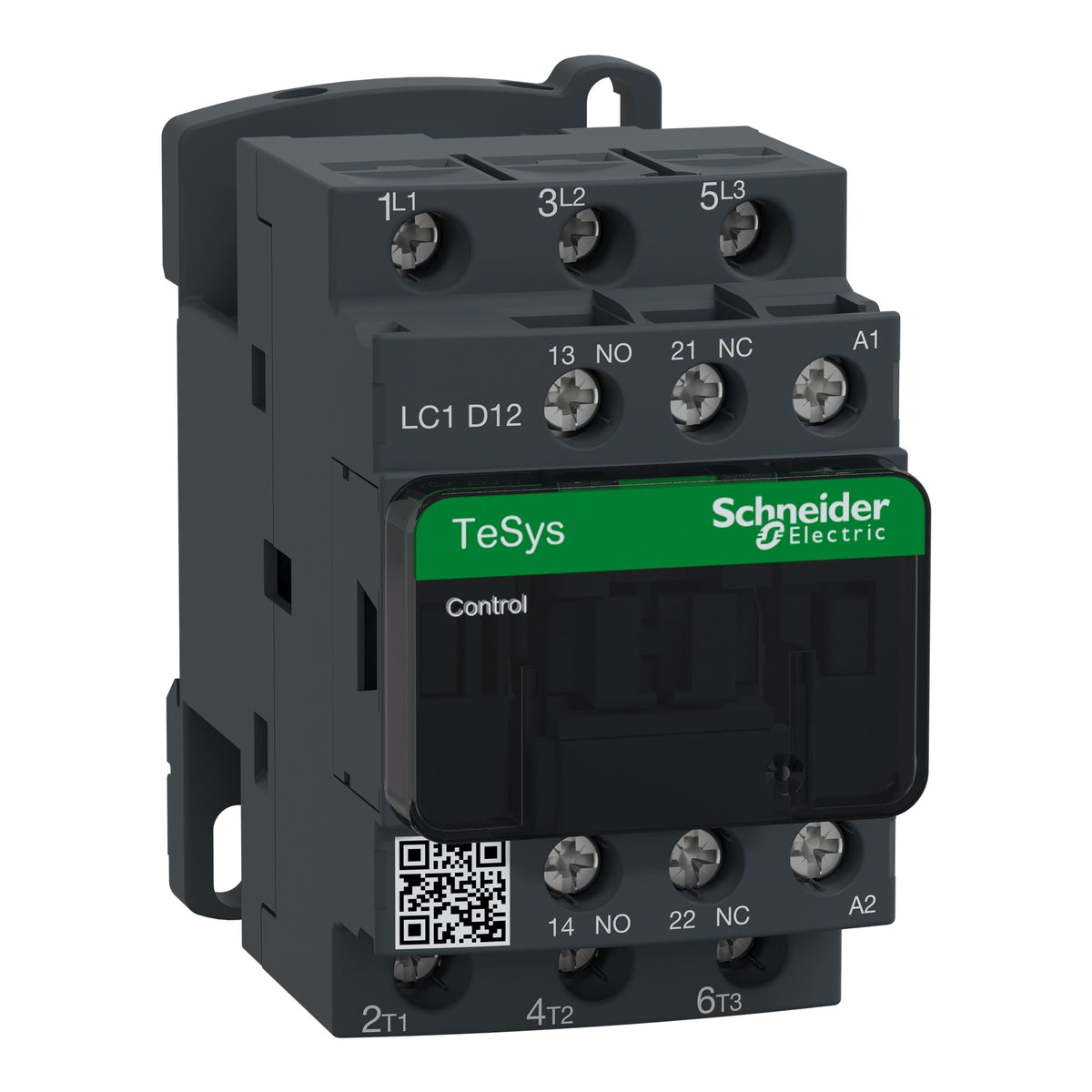

SCHNEIDER ELECTRIC LC1D12F7C - 3-Pole Contactor
The SCHNEIDER ELECTRIC LC1D12F7C is a TeSys D series 3-pole contactor engineered for industrial power circuit switching and motor control applications. It integrates an electromagnetic coil for actuation and features a 12A AC-3 operational current rating, making it suitable for controlling motors up to 5.5 kW at 400V. This component is designed for integration into automation systems, HVAC, and pumping control panels, providing reliable switching for inductive and resistive loads.
Technical Specifications:
- SERIES/FAMILY: TeSys D
- COMPONENT TYPE: 3-Pole Contactor
- ELECTRICAL SPECS:
- OPERATIONAL CURRENT (AC-3): 12A (at <= 440V)
- OPERATIONAL CURRENT (AC-1): 25A (at <= 690V)
- COIL VOLTAGE: 110VAC, 50/60Hz
- RATED OPERATIONAL POWER (AC-3): 5.5 kW (at 400V), 3 kW (at 230V)
- NUMBER OF POLES: 3
- AUXILIARY CONTACTS: 1 Normally Open (NO) + 1 Normally Closed (NC)
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Compact industrial contactor
- TERMINALS: Screw clamp terminals
- MECHANICAL LIFESPAN: 15 Mcycles
- ELECTRICAL LIFESPAN (AC-3): 1.4 Mcycles
- INTERFACE/CONTROL:
- CONTROL TYPE: Electromagnetically actuated coil
- FEEDBACK: Integrated auxiliary contacts for status indication
- ENVIRONMENTAL/MOUNTING:
- MOUNTING: 35mm DIN rail or panel mounting
- OPERATING TEMPERATURE RANGE: -5 to 60 degrees C
- PROTECTION RATING: IP20 (terminals)
- COMPATIBILITY/APPLICATION:
- APPLICATIONS: Motor control, resistive load switching, power circuit switching, industrial automation systems, HVAC, pumping systems, conveying equipment
