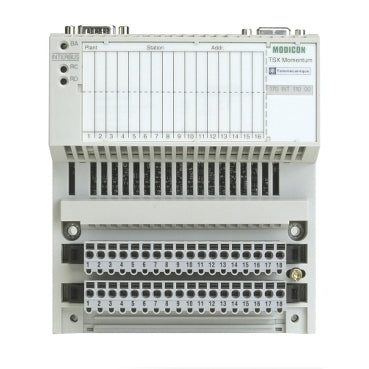

SCHNEIDER ELECTRIC 170INT11000 - I/O Interface Module
The SCHNEIDER ELECTRIC 170INT11000 is an I/O Interface Module designed for the Modicon Quantum Programmable Logic Controller (PLC) platform. This module facilitates the communication and data exchange between Modicon Quantum I/O modules and the Quantum backplane, enabling expansion of I/O capabilities within industrial control systems. It is engineered for integration into process control, discrete manufacturing, and critical infrastructure automation applications.
Technical Specifications:
- SERIES/FAMILY: Modicon Quantum
- COMPONENT TYPE: I/O Interface Module
- ELECTRICAL SPECS:
- OPERATING VOLTAGE: 5VDC (supplied via backplane)
- CURRENT DRAW: 0.25A (typical, from backplane)
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Standard Modicon Quantum module
- MOUNTING: Chassis slot mounting
- INTERFACE/CONTROL:
- FUNCTION: Provides interface between I/O bus and backplane
- COMMUNICATION: Modicon Quantum backplane bus
- I/O CAPACITY: Supports connection of Modicon Quantum I/O modules
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (for control cabinet installation)
- COOLING METHOD: Convection cooled
- MOUNTING STYLE: Chassis slot mounting
- COMPATIBILITY/APPLICATION:
- COMPATIBILITY: Modicon Quantum PLC systems
- APPLICATION: Industrial automation, process control, discrete manufacturing, SCADA systems
