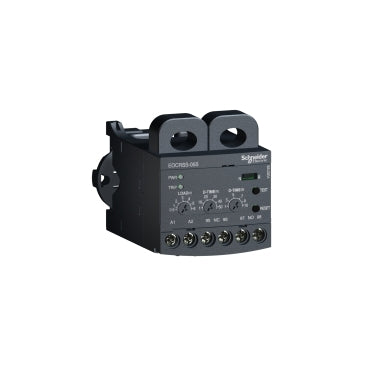

SCHNEIDER ELECTRIC EOCRSS-30S - Electronic Overcurrent Relay
The SCHNEIDER ELECTRIC EOCRSS-30S is a solid-state electronic overcurrent relay engineered for comprehensive protection of three-phase AC motors and associated electrical loads. This device provides precise monitoring and tripping functionalities against overcurrent, phase loss, and phase unbalance conditions. It is designed for integration into industrial control panels, switchgear, and motor control centers across applications such as pumping stations, conveyor systems, and HVAC installations.
Technical Specifications:
- SERIES/FAMILY: EOCR-SS Series
- COMPONENT TYPE: Electronic Overcurrent Relay
- ELECTRICAL SPECS:
- MAIN CIRCUIT CURRENT RANGE: 3A to 30A (Direct Measurement)
- CONTROL VOLTAGE: 24-240VAC/DC
- MAIN CIRCUIT VOLTAGE: Up to 690VAC
- PHASE: Three-Phase
- FREQUENCY: 50/60 Hz
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Compact, DIN Rail or Panel Mountable
- INTERFACE/CONTROL:
- OUTPUT CONTACTS: 1 NO + 1 NC (Trip/Alarm)
- RESET METHOD: Manual / Electrical Remote Reset
- INDICATORS: LED for Trip, Run, Power Status
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (Terminals)
- MOUNTING STYLE: DIN Rail or Panel Mount
- OPERATING TEMPERATURE: -20°C to +60°C
- COMPATIBILITY/APPLICATION: Protection for 3-phase AC motors, pumps, fans, compressors, conveyors, and general industrial machinery requiring robust motor load supervision.
