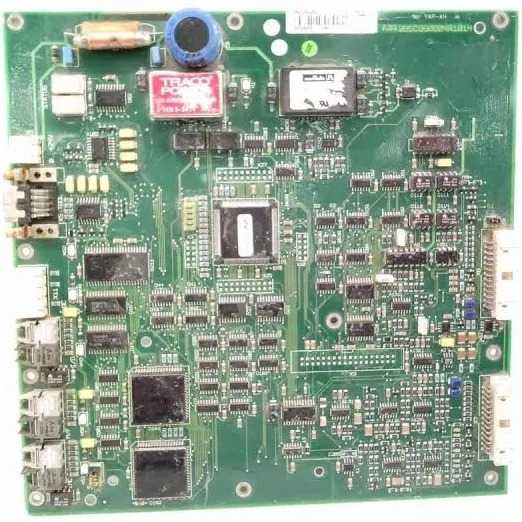

ASEA BROWN BOVERI 3ASC25H203 - DC Drive Control Unit Module
This module is a critical control component for ASEA BROWN BOVERI DC drive systems, primarily within the DCS400 and DCS500 series. It provides the core processing and control logic for precise regulation of DC motors in industrial applications. Functioning as the central intelligence, it manages motor speed, torque, and position control through integrated digital signal processing and communication interfaces.
Technical Specifications:
- SERIES/FAMILY: DCS400/DCS500 Series (Control Board)
- COMPONENT TYPE: DC Drive Control Unit Module
- ELECTRICAL SPECS:
- INTERNAL SUPPLY VOLTAGE: Typically 24VDC (derived from the main drive power supply)
- POWER CONSUMPTION: Low power, specific to internal logic operation
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Printed Circuit Board (PCB) module, designed for slot-in mounting within a drive chassis.
- MOUNTING: Rack-mounted or slot-in within a dedicated drive enclosure.
- INTERFACE/CONTROL:
- COMMUNICATION PROTOCOLS: Supports various fieldbus options via expansion modules (e.g., PROFIBUS DP, Modbus RTU, DeviceNet - depending on drive configuration).
- FEEDBACK INTERFACES: Encoder inputs (e.g., incremental, absolute), analog inputs for speed/current feedback.
- I/O: Digital inputs/outputs for control signals, analog outputs for monitoring.
- CONTROL ALGORITHMS: Integrated PID control, flux control, current control.
- ENVIRONMENTAL/MOUNTING:
- IP RATING: Typically IP00 (component level, protected by the drive's enclosure).
- COOLING METHOD: Convection cooling, relies on the drive's overall cooling system.
- MOUNTING STYLE: Internal chassis mount.
- COMPATIBILITY/APPLICATION:
- TARGET SYSTEMS: ASEA BROWN BOVERI DCS400 and DCS500 series DC drives.
- APPLICATIONS: Extrusion lines, paper machines, wire drawing, rolling mills, cranes, and other industrial processes requiring precise DC motor control.
