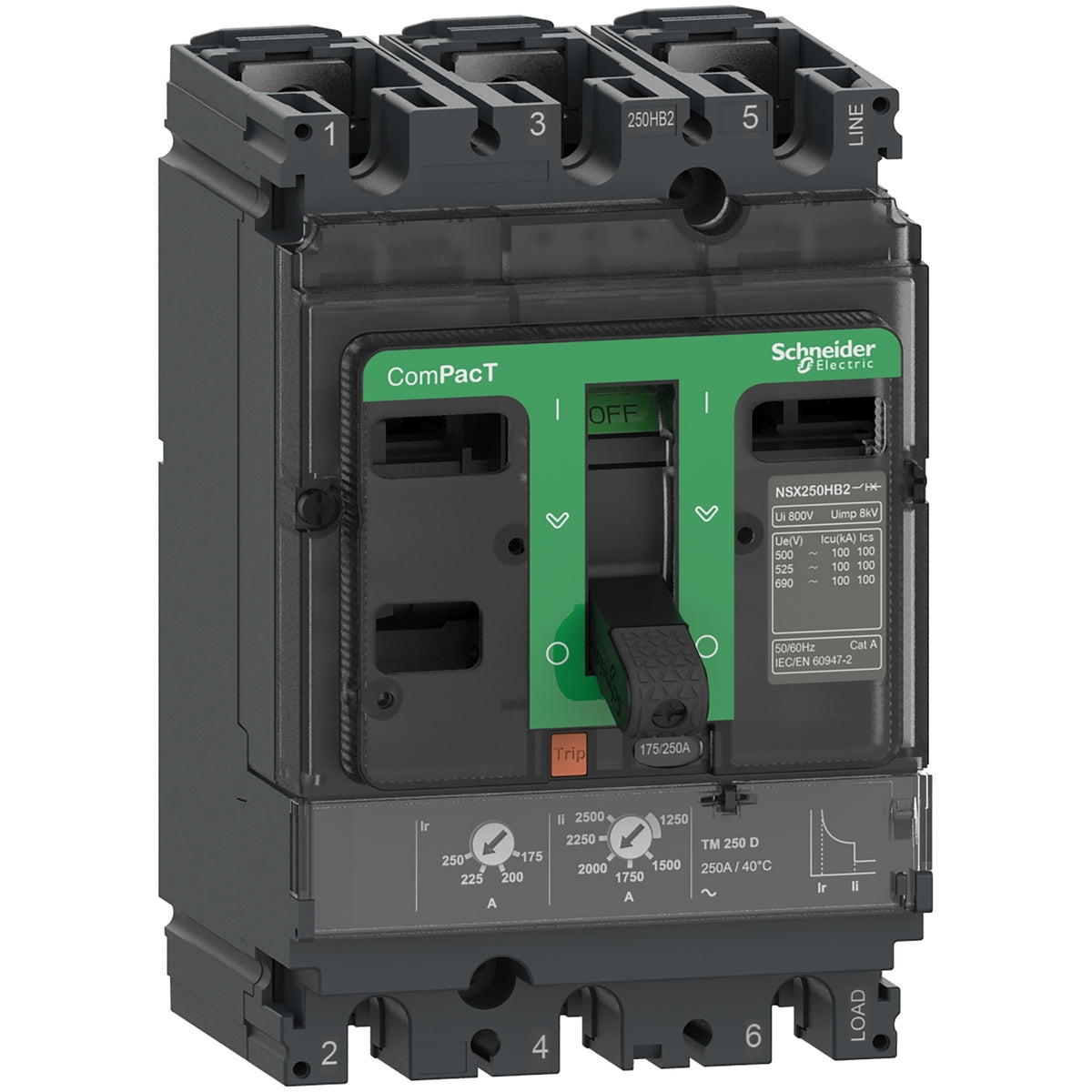

SCHNEIDER ELECTRIC C25N3TM250 - Motor Protection Circuit Breaker
This component is a 3-pole thermal-magnetic motor protection circuit breaker, designed for the control, isolation, and protection of AC motors and associated loads. It integrates overload and short-circuit protection functions within a compact unit, suitable for industrial machinery, pumping systems, and HVAC applications requiring robust motor control and safety. The device provides manual motor starting and stopping capabilities, ensuring operational reliability and compliance with industrial safety standards.
Technical Specifications:
- SERIES/FAMILY: TeSys GV3 (Inferred from characteristics)
- COMPONENT TYPE: Motor Protection Circuit Breaker (MPCB)
- ELECTRICAL SPECS:
- NOMINAL OPERATIONAL VOLTAGE: Up to 690VAC
- NOMINAL OPERATIONAL CURRENT: 25A
- THERMAL TRIP ADJUSTMENT RANGE: 2.5A to 25A
- MAGNETIC TRIP SETTING: 13 x In (approximately 325A for 25A rated current)
- RATED ULTIMATE SHORT-CIRCUIT BREAKING CAPACITY (Icu): 50kA at 400V AC
- FREQUENCY: 50/60 Hz
- POLES: 3-Pole
- MECHANICAL/PHYSICAL:
- CONTROL TYPE: Rotary Handle
- MOUNTING: 35mm DIN Rail or Screw Mounting
- TERMINALS: Screw Clamp Terminals
- FORM FACTOR: Compact Block
- INTERFACE/CONTROL:
- PROTECTION FUNCTIONS: Thermal Overload, Magnetic Short-Circuit
- AUXILIARY CONTACTS: Optional (add-on blocks for status signaling)
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (Terminals), IP40 (Front Face)
- OPERATING TEMPERATURE: -20°C to +60°C
- COOLING METHOD: Natural Convection
- COMPATIBILITY/APPLICATION:
- APPLICATIONS: Motor Control, Motor Protection, Isolation, Industrial Machinery, Pumping, HVAC Systems, Conveyors
- COMPATIBILITY: Direct connection to TeSys D contactors, suitable for IEC standard motors
