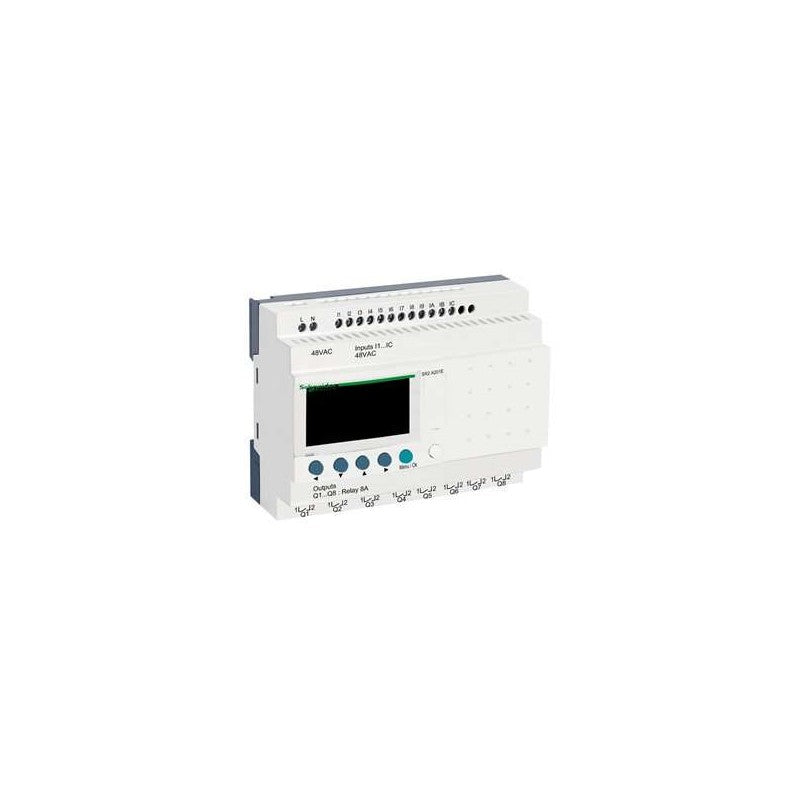

SCHNEIDER ELECTRIC SR2A201E - Smart Relay with Ethernet
This device is a compact, programmable smart relay from the Zelio Logic 2 series, engineered for decentralized automation of simple to medium-complexity industrial processes. It integrates logic control, timing, counting, and communication functions, suitable for applications such as small machine control, building automation, and HVAC systems. The unit features an embedded Ethernet port for Modbus TCP/IP communication and remote monitoring capabilities.
Technical Specifications:
- SERIES/FAMILY: Zelio Logic 2
- COMPONENT TYPE: Smart Relay / Programmable Logic Controller (PLC)
- ELECTRICAL SPECS:
- NOMINAL VOLTAGE: 100-240VAC
- INPUTS: 12 digital inputs, 100-240VAC
- OUTPUTS: 8 relay outputs
- OUTPUT CURRENT RATING: 8A per output (resistive load)
- OUTPUT TYPE: Normally Open (NO) relay contacts
- POWER CONSUMPTION: 4-10VA (typical, depending on load)
- INTERFACE/CONTROL:
- COMMUNICATION PROTOCOL: Modbus TCP/IP
- COMMUNICATION INTERFACE: Ethernet port (RJ45)
- PROGRAMMING LANGUAGE: Function Block Diagram (FBD) or Ladder Logic (LAD)
- PROGRAMMING INTERFACE: Ethernet port or dedicated programming cable (SR2USB01)
- DISPLAY: Integrated LCD with 4 lines of 18 characters
- LOCAL CONTROL: 6 function buttons for parameter adjustment and local control
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (front panel when mounted in enclosure), IP40 (terminal block cover)
- OPERATING TEMPERATURE: -20 to 55 degrees C
- MOUNTING STYLE: DIN rail or panel mounting
- COOLING METHOD: Natural convection
- COMPATIBILITY/APPLICATION:
- TARGET SYSTEMS: Small machines, pumps, compressors, lighting control, access control, HVAC systems, simple conveyor systems
- SOFTWARE COMPATIBILITY: Zelio Soft 2 programming software
