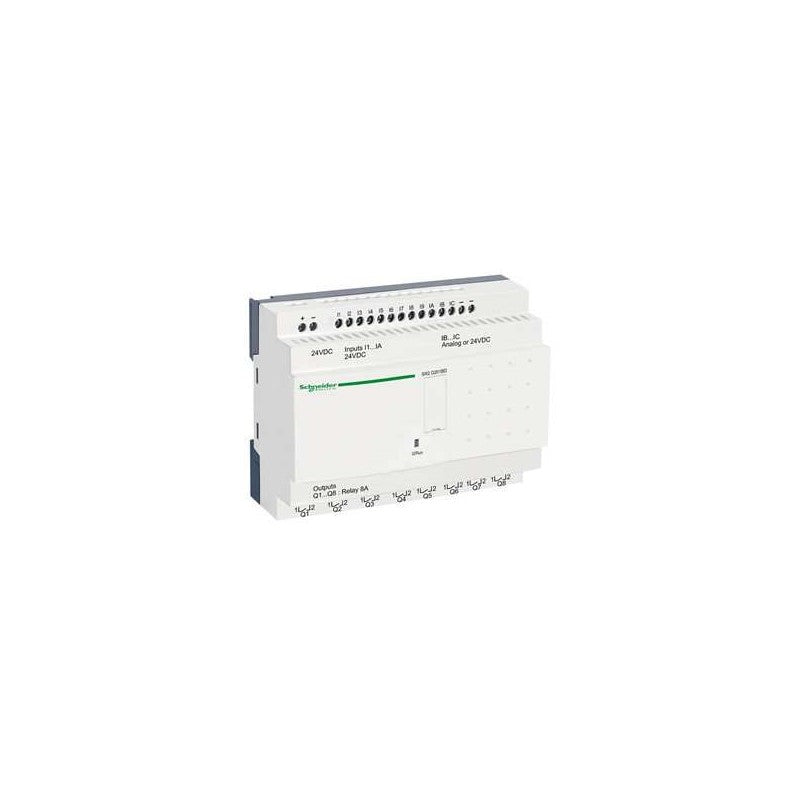

SCHNEIDER ELECTRIC SR2D201BD - Smart Relay
The SCHNEIDER ELECTRIC SR2D201BD is a Zelio Logic 2 compact smart relay engineered for decentralized control in industrial and commercial automation applications. This programmable logic relay integrates digital inputs and relay outputs, providing a cost-effective solution for managing simple to medium-complexity control tasks. It supports Ladder Diagram (LAD) and Function Block Diagram (FBD) programming, making it suitable for HVAC systems, lighting control, access management, and small machine automation.
Technical Specifications:
- SERIES/FAMILY: Zelio Logic 2
- COMPONENT TYPE: Smart Relay / Programmable Logic Relay
- ELECTRICAL SPECS:
- NOMINAL VOLTAGE: 24V DC
- INPUT VOLTAGE RANGE: 0-24V DC (for digital inputs)
- OUTPUT TYPE: Relay
- OUTPUT RATING: 8A per output (resistive load)
- POWER CONSUMPTION: Approximately 4W
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Compact Monobloc
- I/O COUNT: 20 (12 Digital Inputs, 8 Relay Outputs)
- DISPLAY: Integrated LCD with backlighting
- CONTROL: Integrated push-buttons for local programming and operation
- INTERFACE/CONTROL:
- PROGRAMMING: Zelio Soft 2 software via USB programming cable (not included)
- EXPANSION: Supports Zelio Logic 2 extension modules for additional I/O or communication
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (terminals), IP40 (front panel)
- MOUNTING: 35mm DIN rail or panel mount
- OPERATING TEMPERATURE: 0 to 55 degrees C (32 to 131 degrees F)
- COOLING: Natural convection
- COMPATIBILITY/APPLICATION: Small automation systems, HVAC control, lighting management, access control, pump regulation, simple machine sequencing.
