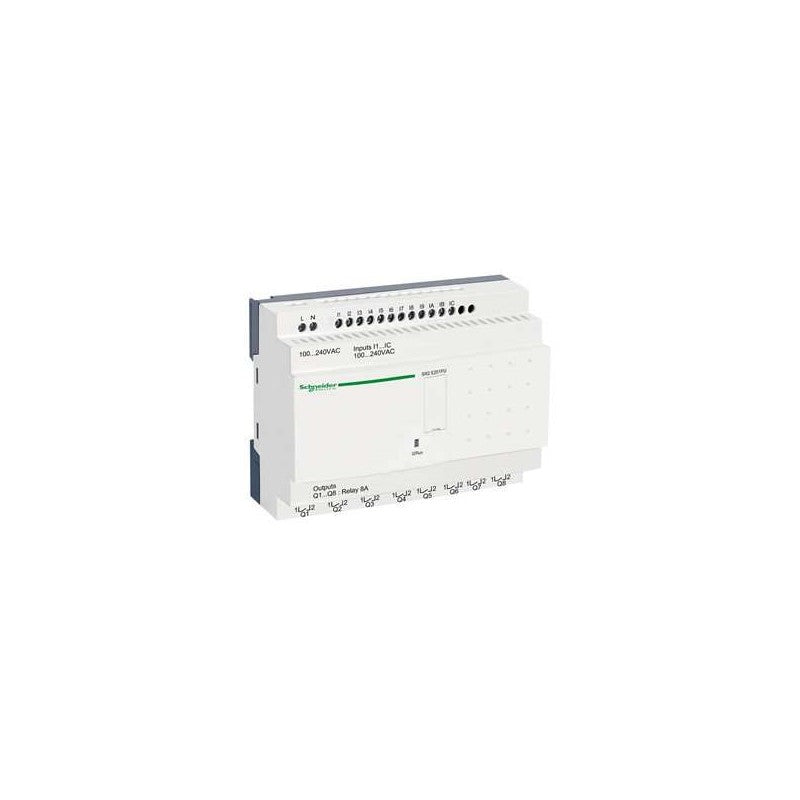

SCHNEIDER ELECTRIC SR2E201FU - Smart Relay
This device is a SCHNEIDER ELECTRIC Zelio Logic SR2 series compact smart relay, engineered for standalone control within small to medium-sized industrial automation systems. It integrates programmable logic control capabilities with embedded digital inputs and relay outputs, suitable for applications requiring sequential control, timing, and counting functions in machinery, HVAC, and building management. The unit operates on a universal AC power supply and provides robust relay switching for various loads, offering a cost-effective solution for localized control tasks.
Technical Specifications:
- SERIES/FAMILY: Zelio Logic SR2 Compact
- COMPONENT TYPE: Programmable Smart Relay
- ELECTRICAL SPECS:
- NOMINAL VOLTAGE: 100-240 VAC
- OPERATING VOLTAGE RANGE: 85-264 VAC
- POWER CONSUMPTION: 4 VA (at 240 VAC)
- INPUT TYPE: Digital (discrete)
- OUTPUT TYPE: Relay (NO - Normally Open)
- OUTPUT CURRENT RATING: 8 A (resistive load, per output)
- OUTPUT SWITCHING CAPACITY: 250 VAC / 30 VDC
- INTERFACE/CONTROL:
- DIGITAL INPUTS: 12
- RELAY OUTPUTS: 8
- PROGRAMMING INTERFACE: Front panel buttons, PC software (Zelio Soft 2) via dedicated programming cable (e.g., SR2USB01)
- COMMUNICATION: No integrated fieldbus optional expansion modules available (e.g., Modbus serial)
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (terminals), IP40 (front panel when mounted in enclosure)
- OPERATING TEMPERATURE: -20 to 55 degrees C
- MOUNTING STYLE: DIN Rail (35 mm)
- COOLING METHOD: Natural convection
- COMPATIBILITY/APPLICATION:
- TARGET SYSTEMS: Small machine control, pump control, lighting management, access control, HVAC systems, simple process automation
- PROGRAMMING LANGUAGE: Function Block Diagram (FBD), Ladder Diagram (LD)
