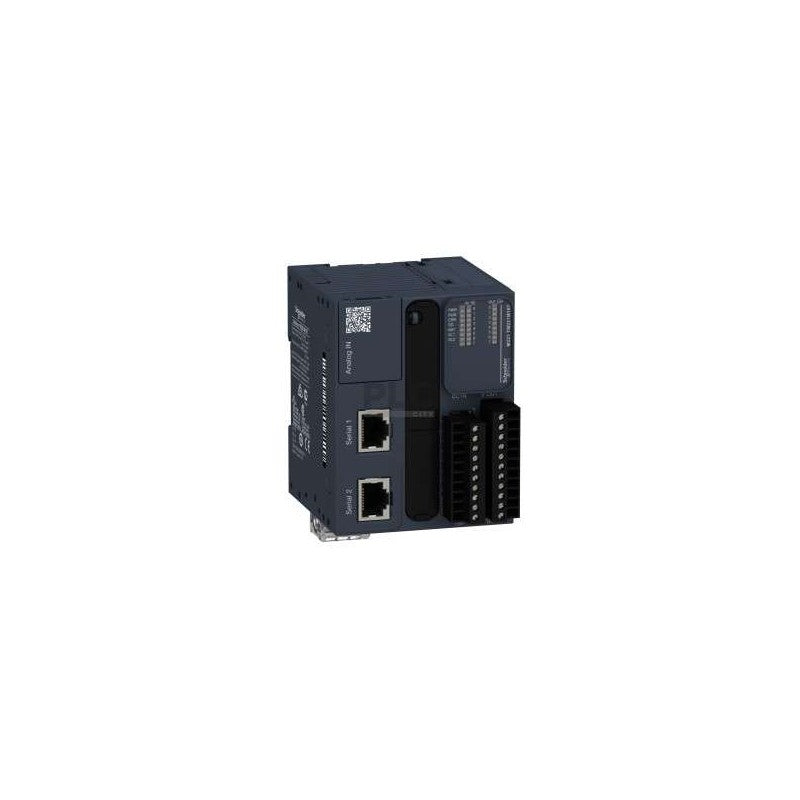

SCHNEIDER ELECTRIC TM221M16T - Compact Programmable Logic Controller
The SCHNEIDER ELECTRIC TM221M16T is a Modicon M221 series compact programmable logic controller engineered for industrial automation applications requiring integrated control and monitoring. This unit features an embedded central processing unit with 16 discrete I/O points, including transistor outputs, facilitating direct interface with 24VDC sensors and actuators. It is suitable for deterministic control in small to medium-sized machinery, material handling systems, and HVAC applications.
Technical Specifications:
- SERIES/FAMILY: Modicon M221
- COMPONENT TYPE: Compact Programmable Logic Controller (PLC)
- ELECTRICAL SPECS:
- NOMINAL SUPPLY VOLTAGE: 24VDC
- DIGITAL INPUTS: 8 (24VDC, sink/source)
- DIGITAL OUTPUTS: 8 (Transistor, 24VDC, 0.5A per output)
- POWER CONSUMPTION: 15W (maximum)
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Compact
- MOUNTING: 35mm DIN Rail
- INTERFACE/CONTROL:
- PROGRAMMING PORT: USB Mini-B
- COMMUNICATION PORTS: Ethernet (Modbus TCP/IP), Serial (Modbus RTU/ASCII)
- EMBEDDED I/O: Digital Inputs, Digital Transistor Outputs
- PROGRAMMING LANGUAGE: IEC 61131-3 compliant (Ladder Diagram, Function Block Diagram, Structured Text, Instruction List)
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20
- OPERATING TEMPERATURE: 0 to 55 degrees C (32 to 131 degrees F)
- COOLING METHOD: Natural convection
- COMPATIBILITY/APPLICATION:
- TARGET SYSTEMS: Standalone machines, small to medium-scale automation systems, distributed control architectures
- APPLICATIONS: Packaging machinery, material handling, pumping stations, textile equipment, general machine control
