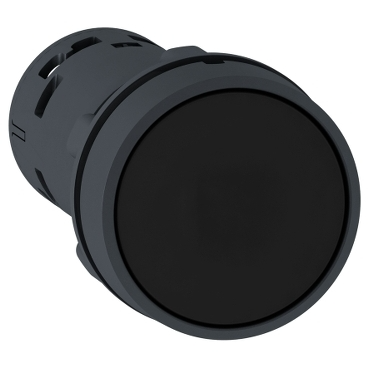

SCHNEIDER ELECTRIC XB7NH25 - Monolithic Push Button
The SCHNEIDER ELECTRIC XB7NH25 is a Harmony XB7 series monolithic control and signaling unit. It functions as a momentary, flush-mounted push button for direct control circuit activation. Designed for integration into industrial control panels and machinery, it provides discrete input for start/stop functions, process initiation, and safety interlocks in applications such as material handling, packaging lines, and general machine control.
Technical Specifications:
- SERIES/FAMILY: Harmony XB7
- COMPONENT TYPE: Monolithic Push Button, Spring Return
- ELECTRICAL SPECS:
- CONTACT CONFIGURATION: 1 NO (Normally Open)
- RATED OPERATIONAL VOLTAGE (Ue): 240VAC (AC-15), 250VDC (DC-13)
- RATED OPERATIONAL CURRENT (Ie): 3A @ 240VAC (AC-15), 0.27A @ 250VDC (DC-13)
- CONVENTIONAL FREE AIR THERMAL CURRENT (Ith): 10A
- MECHANICAL/PHYSICAL:
- HEAD TYPE: Round, Flush
- ACTUATOR TYPE: Spring Return
- COLOR: Green
- MOUNTING DIAMETER: 22 mm
- OPERATING FORCE: 3.5 N
- MECHANICAL DURABILITY: 1,000,000 cycles
- INTERFACE/CONTROL:
- SIGNALING TYPE: Discrete Input
- TERMINAL TYPE: Screw Clamp Terminals
- ENVIRONMENTAL/MOUNTING:
- IP RATING (FRONT FACE): IP65, IP67 (IEC 60529)
- IP RATING (REAR FACE): IP20 (IEC 60529)
- NEMA RATING: NEMA 13, NEMA 4X
- OPERATING TEMPERATURE: -25 to 70 degrees C
- MOUNTING STYLE: Panel Mount, Flush
- COMPATIBILITY/APPLICATION:
- CONTROL SYSTEMS: Industrial Control Panels, Machine Interfaces
- APPLICATIONS: Start/Stop Control, Process Activation, Safety Interlocks, General Machine Operation
