DESCRIZIONE PRODOTTO

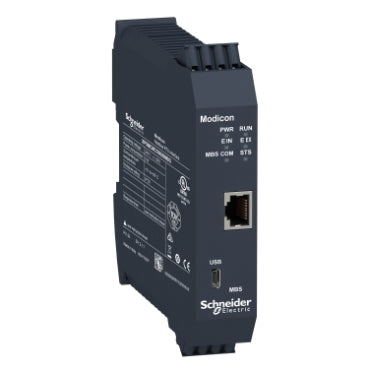

SCHNEIDER ELECTRIC XPSMCMCO0000MBG - Modular Safety Controller CPU
The SCHNEIDER ELECTRIC XPSMCMCO0000MBG is the central processing unit for the Preventa XPSMCM modular safety controller system. This programmable safety controller is engineered for complex industrial safety applications, providing configurable safety functions compliant with IEC 61508 SIL 3 and ISO 13849-1 PLe standards. It serves as the core logic solver for machinery requiring advanced safety interlocking, emergency stop, and protective device monitoring in sectors such as robotics, material handling, and automated manufacturing.
Technical Specifications:
- SERIES/FAMILY: Preventa XPSMCM
- COMPONENT TYPE: Modular Safety Controller CPU
- ELECTRICAL SPECS:
- NOMINAL VOLTAGE: 24VDC
- POWER CONSUMPTION: 5W (Typical for CPU module)
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Compact DIN Rail Module
- MOUNTING: 35mm DIN Rail
- INTERFACE/CONTROL:
- COMMUNICATION PORTS: 1x Ethernet (RJ45) for configuration and Modbus TCP
- PROGRAMMING SOFTWARE: SoSafe Configurable Software
- SAFETY PROTOCOLS: Supports various safety fieldbus protocols via optional communication modules (e.g., PROFINET/PROFIsafe, EtherNet/IP/CIP Safety)
- I/O CAPABILITY: Expandable via dedicated XPSMCM I/O modules (base unit has no integrated safety I/O)
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (for control cabinet mounting)
- OPERATING TEMPERATURE: 0 to 55 degrees C
- COOLING METHOD: Natural Convection
- COMPATIBILITY/APPLICATION:
- SAFETY STANDARDS: IEC 61508 SIL 3, ISO 13849-1 PLe, IEC 62061 SIL CL 3
- SAFETY FUNCTIONS: Emergency Stop, Guard Monitoring, Light Curtain Monitoring, Two-Hand Control, Safety Mat Monitoring, Muting
- TARGET SYSTEMS: Industrial machinery, robotic cells, presses, packaging lines, material handling systems, and automated production equipment requiring configurable safety logic.
