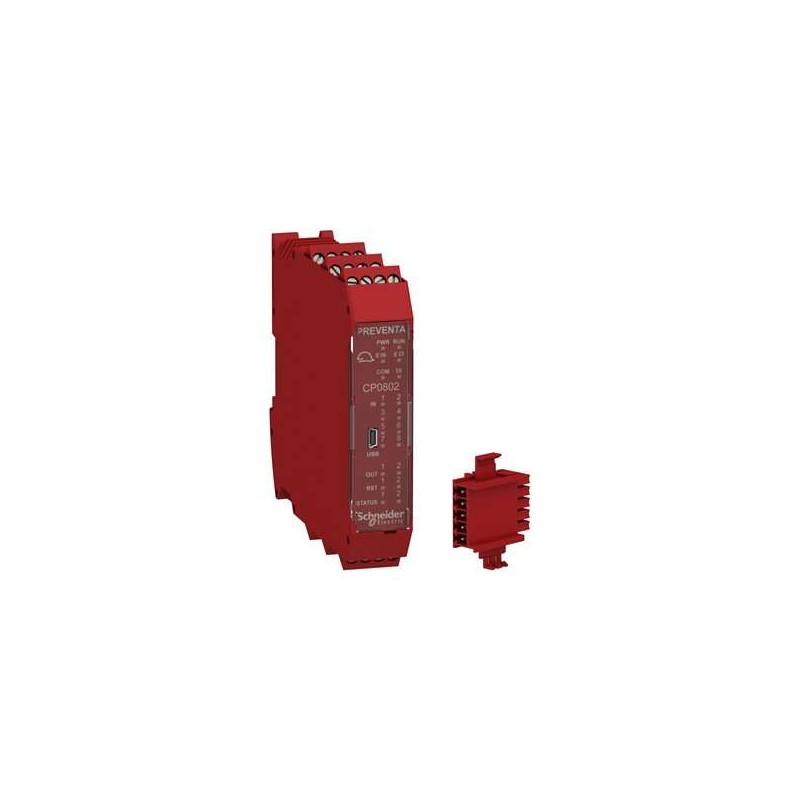

SCHNEIDER ELECTRIC XPSMCMCP0802BC - Configurable Safety Controller Module
The SCHNEIDER ELECTRIC XPSMCMCP0802BC is a configurable safety controller module engineered for monitoring and managing safety functions in industrial automation systems. It integrates 8 safety inputs and 2 safety outputs, providing a robust solution for applications requiring compliance with high safety integrity levels. This module is designed for critical safety applications such as emergency stop circuits, safety gate monitoring, and light curtain integration, utilizing a programmable architecture for flexible safety logic implementation.
Technical Specifications:
- SERIES/FAMILY: Preventa XPS MC
- COMPONENT TYPE: Configurable Safety Controller Module
- ELECTRICAL SPECS:
- NOMINAL VOLTAGE: 24 VDC
- POWER CONSUMPTION: 5 W (Typical)
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Compact DIN Rail Mount Module
- MOUNTING: 35 mm DIN Rail
- INTERFACE/CONTROL:
- SAFETY INPUTS: 8 (Configurable for various safety devices)
- SAFETY OUTPUTS: 2 (OSSD - Output Signal Switching Device)
- COMMUNICATION PROTOCOLS: Ethernet (Modbus TCP, EtherNet/IP, PROFINET) for standard communication dedicated safety communication capabilities for integration into safety networks.
- PROGRAMMING INTERFACE: USB or Ethernet for configuration via SoSafe Configurable software.
- SAFETY STANDARDS: Up to Performance Level e (PL e), Category 4 per ISO 13849-1 Up to Safety Integrity Level 3 (SIL 3) per IEC 61508/62061.
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20
- COOLING METHOD: Natural Convection
- OPERATING TEMPERATURE: 0 to 55 degrees Celsius
- COMPATIBILITY/APPLICATION: Industrial machinery, robotics, material handling systems, process control, and any application requiring programmable safety logic and compliance with international safety standards.
