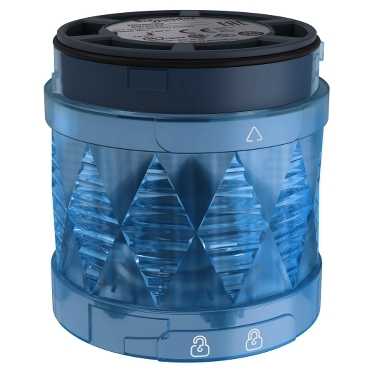

SCHNEIDER ELECTRIC XVUC46 - Modular Tower Light Unit
This component is a modular light unit designed for the SCHNEIDER ELECTRIC XVU series industrial signal towers. It provides visual status indication for machinery and processes, utilizing high-brightness LED technology with selectable steady or flashing illumination modes. Engineered for integration into automated systems, it serves critical roles in operational status monitoring, safety alerts, and process control feedback across diverse industrial environments.
Technical Specifications:
- SERIES/FAMILY: XVU Modular Tower Lights
- COMPONENT TYPE: Light Unit
- ELECTRICAL SPECS:
- NOMINAL VOLTAGE: 24V DC (supplied via base unit)
- CURRENT CONSUMPTION: Approximately 40-60 mA
- LIGHT SOURCE: High-Brightness LED
- MECHANICAL/PHYSICAL:
- COLOR: Green
- ILLUMINATION MODE: Steady or Flashing (selectable)
- DIAMETER: 60 mm
- FORM FACTOR: Stackable, cylindrical module
- INTERFACE/CONTROL:
- CONNECTION: Integrated electrical contacts for modular stacking
- CONTROL: External control via base unit wiring for illumination mode selection
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP65 (when assembled with XVU base and other modules)
- OPERATING TEMPERATURE: -25°C to +50°C
- MOUNTING STYLE: Tool-free modular stacking onto XVU base units
- COMPATIBILITY/APPLICATION:
- COMPATIBILITY: SCHNEIDER ELECTRIC XVU Series Base Units and Modules
- APPLICATION: Machine status indication, process monitoring, safety signaling, automation line status, control panel integration
