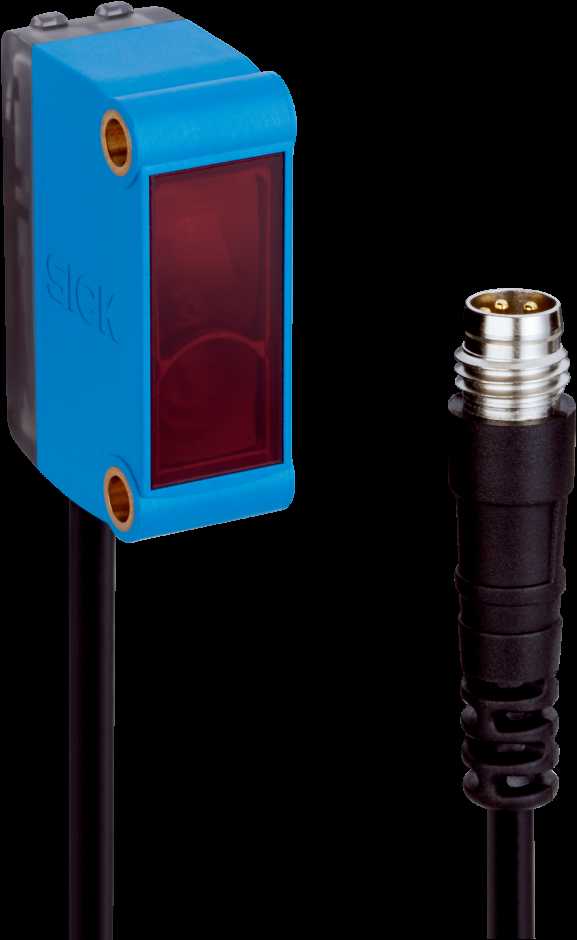

SICK 1081349 - Photoelectric Proximity Sensor
This SICK W4-3 series photoelectric proximity sensor, model WTB4-3P2161, provides reliable object detection with integrated background suppression. Utilizing PinPoint LED technology and a PNP output, it is engineered for precise presence detection in automated machinery, material handling systems, and packaging applications where compact form factors and robust performance are critical. Its adjustable sensing range and M8 connector facilitate integration into diverse industrial control architectures.
Technical Specifications:
- SERIES/FAMILY: W4-3 Miniature Photoelectric Sensors
- COMPONENT TYPE: Photoelectric Proximity Sensor with Background Suppression
- ELECTRICAL SPECS:
- SUPPLY VOLTAGE: 10 V DC to 30 V DC
- OUTPUT TYPE: PNP, Light/Dark Switching Selectable
- SWITCHING CURRENT: Max. 100 mA
- SWITCHING FREQUENCY: 1,000 Hz
- RESPONSE TIME: 0.5 ms
- MECHANICAL/PHYSICAL:
- SENSING PRINCIPLE: Energetic Photoelectric, Background Suppression
- SENSING RANGE: 30 mm to 150 mm (Adjustable via Potentiometer)
- LIGHT SOURCE: PinPoint LED, Red Light (650 nm)
- HOUSING MATERIAL: ABS/PC (Housing), PMMA (Front Screen)
- ADJUSTMENT: Potentiometer for Sensing Range
- INTERFACE/CONTROL:
- CONNECTION TYPE: M8, 3-pin Male Connector
- OUTPUT FUNCTION: Complementary (NO/NC selectable via light/dark switching)
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP67
- OPERATING TEMPERATURE: -40 °C to +60 °C
- COOLING METHOD: Convection
- MOUNTING STYLE: Through-hole, Miniature Rectangular Housing
- COMPATIBILITY/APPLICATION: Automated Assembly Lines, Packaging Machinery, Material Handling, Robotics, General Industrial Automation
