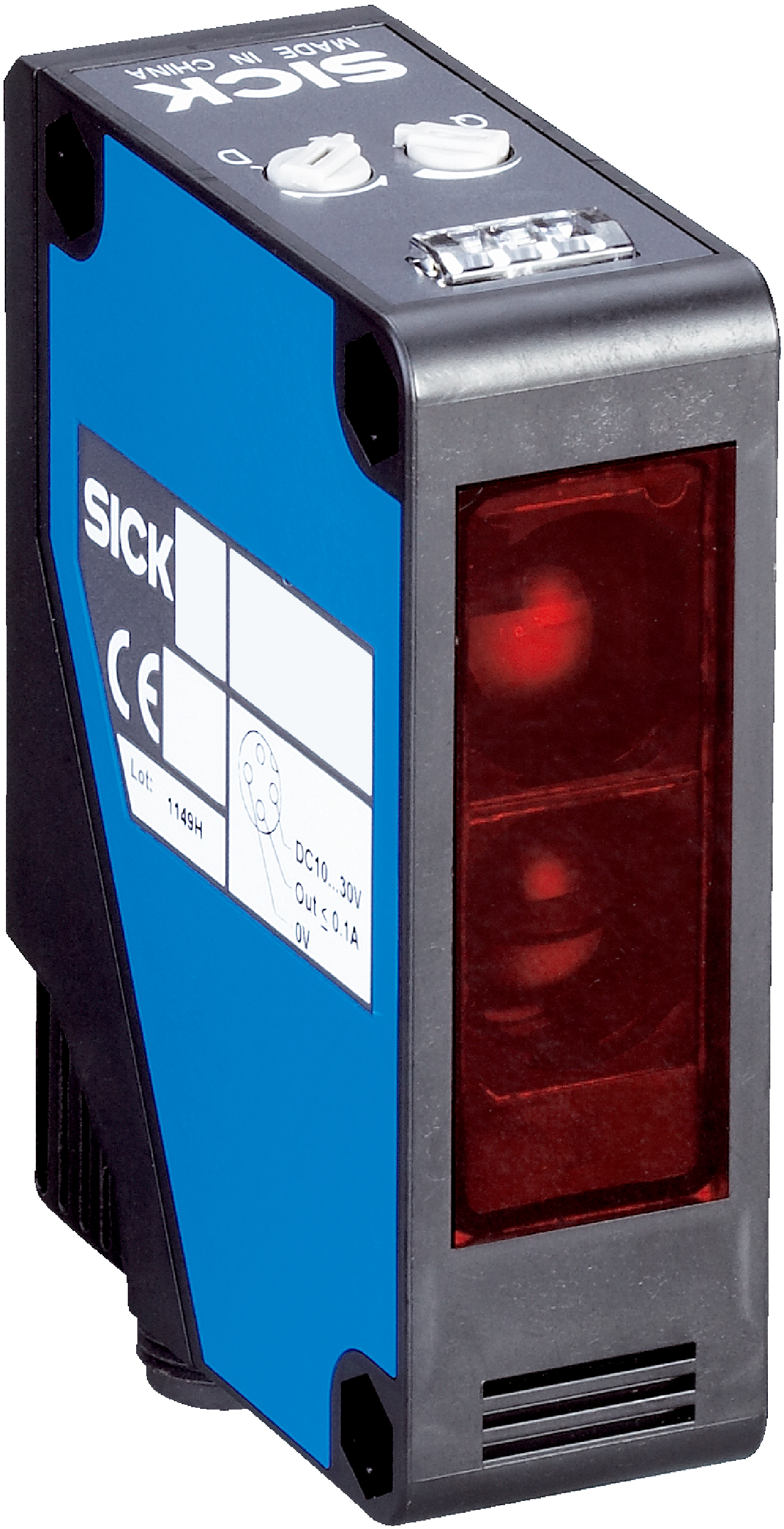

SICK 6044739 - Photoelectric Sensor
The SICK 6044739 is a W4-3 series miniature photoelectric sensor designed for precise object detection in industrial automation environments. Utilizing diffuse reflection with background suppression technology, this sensor provides reliable presence detection for various materials, making it suitable for applications in material handling, packaging machinery, and automated assembly lines. Its compact form factor and robust electrical interface ensure seamless integration into existing control systems requiring non-contact sensing.
Technical Specifications:
- SERIES/FAMILY: W4-3 Miniature Photoelectric Sensor
- COMPONENT TYPE: Photoelectric Sensor, Diffuse Reflection with Background Suppression
- ELECTRICAL SPECS:
- NOMINAL OPERATING VOLTAGE: 10 VDC to 30 VDC
- CURRENT CONSUMPTION: < 20 mA
- OUTPUT TYPE: PNP Transistor Output
- SWITCHING FREQUENCY: 1000 Hz
- MECHANICAL/PHYSICAL:
- HOUSING MATERIAL: ABS/PC
- CONNECTION TYPE: M8 3-Pin Male Connector
- LIGHT SOURCE: PinPoint LED, Red Light
- INTERFACE/CONTROL:
- SENSING PRINCIPLE: Diffuse Reflection with Background Suppression
- SENSING RANGE: 30 mm to 200 mm (Adjustable)
- OUTPUT FUNCTION: Light/Dark Switching Selectable
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP67
- OPERATING TEMPERATURE RANGE: -40 °C to +60 °C
- MOUNTING STYLE: Through-hole, M3 Screws
- COMPATIBILITY/APPLICATION:
- TARGET SYSTEMS: Conveyor Systems, Automated Assembly Lines, Packaging Machines, Robotic Cells
- SPECIFIC MACHINE TYPES: Industrial machinery requiring reliable, non-contact object detection in confined spaces or with varying background conditions
