DESCRIZIONE PRODOTTO

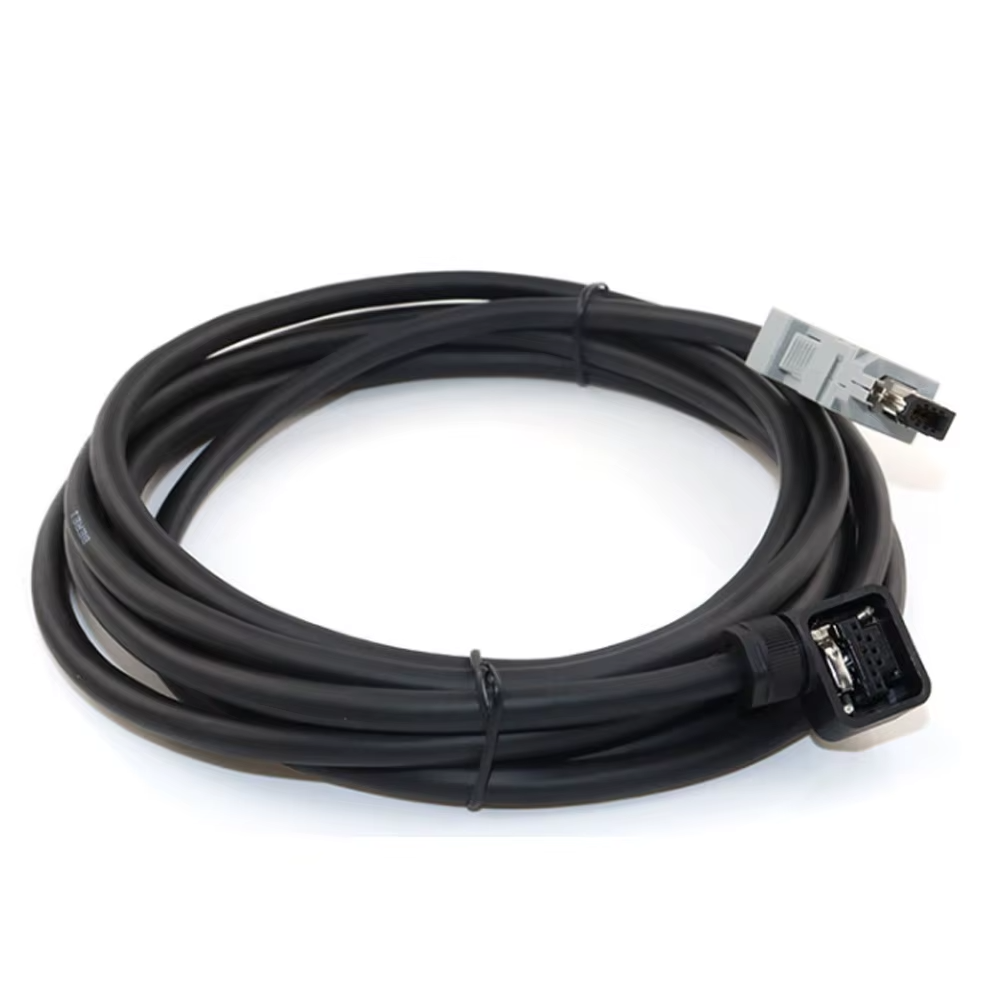

YASKAWA ELECTRIC JZSP-CSP01-05-E - Servo System Encoder Feedback Cable
This YASKAWA ELECTRIC JZSP-CSP01-05-E is an industrial-grade encoder feedback cable engineered for robust connectivity within Yaskawa Sigma series servo systems. It provides a critical, shielded pathway for high-resolution encoder signals between the servo motor's encoder and the SERVOPACK servo drive, ensuring precise position and speed control. This component is essential for maintaining closed-loop control integrity in demanding motion control applications such as robotics, CNC machining, and automated assembly lines.
Technical Specifications:
- SERIES/FAMILY: JZSP-CSP01 Series (Sigma Series Accessory)
- COMPONENT TYPE: Servo Motor Encoder Feedback Cable
- ELECTRICAL SPECS: Designed for low-voltage differential signal transmission features multi-conductor, shielded twisted pair construction for electromagnetic interference (EMI) suppression and signal integrity. Conductor gauge and insulation are rated for industrial control signal environments.
- MECHANICAL/PHYSICAL:
- LENGTH: 5 meters
- CABLE TYPE: Flexible, multi-conductor industrial cable with high flex life.
- CONNECTORS: Equipped with specific Yaskawa proprietary connectors for secure and reliable mating with Sigma series servo motor encoders and SERVOPACK encoder feedback ports.
- INTERFACE/CONTROL: Facilitates the transmission of encoder feedback signals (e.g., incremental, absolute, or Yaskawa's proprietary serial encoder communication) from the servo motor to the SERVOPACK, enabling precise position and velocity control.
- ENVIRONMENTAL/MOUNTING:
- IP RATING: Designed for industrial environments resistance to dust and moisture ingress is dependent on the connected devices' receptacle ratings and proper connection.
- OPERATING TEMPERATURE: Standard industrial range, typically 0 to 55 degrees Celsius.
- MOUNTING STYLE: Cable connection between fixed industrial components, suitable for dynamic or static installations.
- COMPATIBILITY/APPLICATION: Primarily compatible with Yaskawa Sigma series SERVOPACKs and associated servo motors equipped with compatible encoder interfaces. Utilized in precision motion control systems, including industrial robots, machine tools, packaging machinery, and semiconductor manufacturing equipment.
