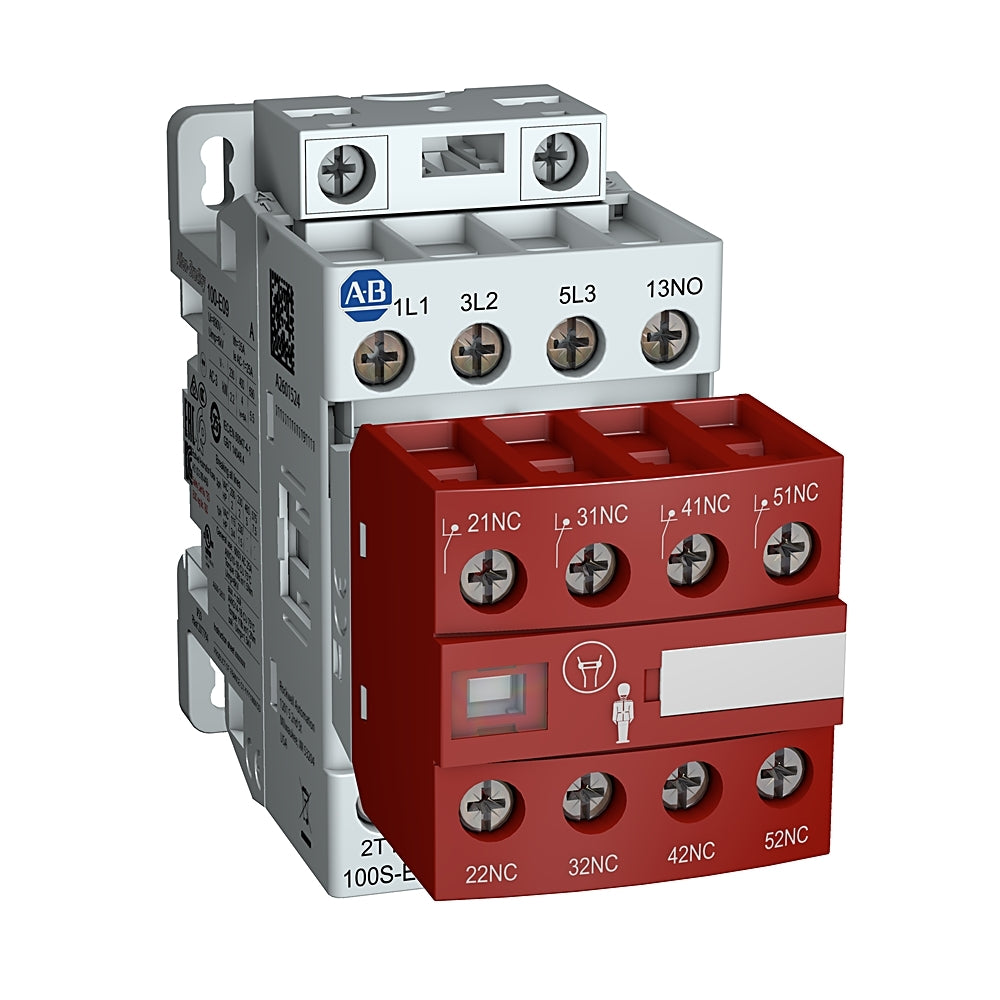

ALLEN BRADLEY 100S-E16KY32C - Safety Contactor
This device is an ALLEN BRADLEY 100S-E series safety contactor, engineered for reliable load switching in safety-rated control systems. It integrates an electronically controlled coil for broad voltage compatibility and reduced power consumption, making it suitable for emergency stop circuits, safety interlocking, and controlled motor shutdown applications in industrial machinery. The unit provides robust power switching capabilities for three-phase motor loads up to 16 Amperes.
Technical Specifications:
- SERIES/FAMILY: 100S-E Safety Contactor
- COMPONENT TYPE: 3-Pole Safety Contactor with Electronically Controlled Coil
- ELECTRICAL SPECS:
- MAIN CONTACT RATING: 16A AC-3 (for motor loads)
- MAIN CONTACT VOLTAGE: Up to 690V AC
- COIL VOLTAGE: 24-240V AC/DC (Wide Range Electronic Coil)
- AUXILIARY CONTACTS: 1 Normally Open (NO) + 1 Normally Closed (NC)
- FREQUENCY: 50/60 Hz
- MECHANICAL/PHYSICAL:
- POLES: 3 Main Poles
- FORM FACTOR: Standard Industrial Contactor
- TERMINATION: Screw Terminals
- INTERFACE/CONTROL:
- CONTROL INPUT: Coil Voltage Input
- FEEDBACK: Integrated Auxiliary Contacts for Status Indication
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (Terminal Protection)
- MOUNTING STYLE: 35mm DIN Rail Mountable
- OPERATING TEMPERATURE: -25°C to +60°C
- COOLING METHOD: Natural Convection
- COMPATIBILITY/APPLICATION:
- TARGET SYSTEMS: Safety-rated control systems, Emergency Stop (E-Stop) circuits, Safety Interlocking, Motor Control Centers (MCCs)
- MACHINE TYPES: Conveyors, Robotics, Packaging Machinery, Machine Tools, Process Equipment requiring safety functions
