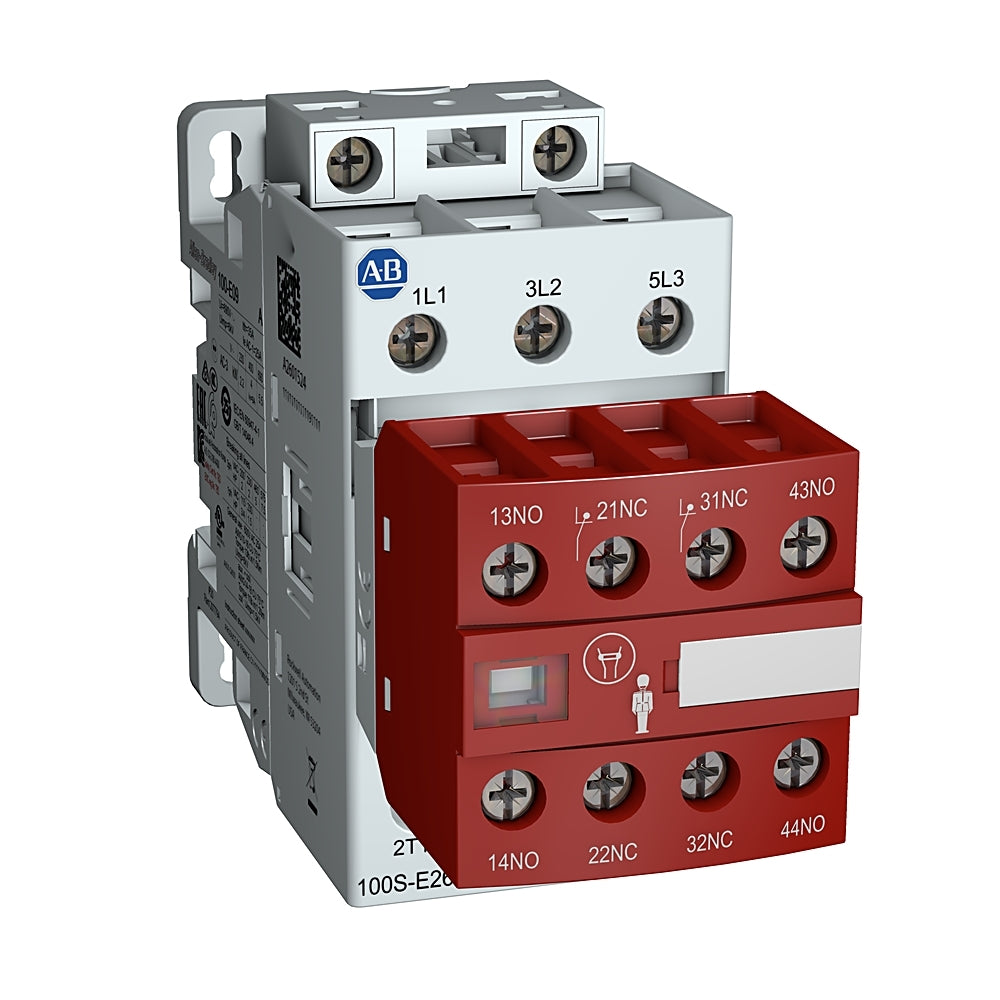

ALLEN BRADLEY 100S-E30KJ04C - Safety Contactor
This component is a 3-pole safety contactor from the Allen Bradley 100S-E series, engineered for reliable load switching in safety-critical industrial applications. It integrates directly into machine safety circuits, providing controlled power interruption for emergency stop, safety gate, and light curtain systems. The unit features a 24V DC coil for precise control and includes integrated auxiliary contacts for status monitoring within a safety control architecture.
Technical Specifications:
- SERIES/FAMILY: 100S-E Safety Contactor
- COMPONENT TYPE: Safety Contactor
- ELECTRICAL SPECS:
- NOMINAL CURRENT (AC-3): 30 Amperes
- COIL VOLTAGE: 24 Volts DC
- NUMBER OF POLES: 3 Main Power Poles
- AUXILIARY CONTACTS: 1 Normally Open (NO) + 1 Normally Closed (NC)
- RATED OPERATIONAL VOLTAGE: Up to 690 Volts AC
- RATED INSULATION VOLTAGE: 1000 Volts AC
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Compact DIN Rail Mountable Contactor
- TERMINATION: Screw Terminals
- INTERFACE/CONTROL:
- CONTROL TYPE: DC Coil Actuation
- SAFETY INTEGRATION: Mechanically Linked Contacts, Mirror Contacts for Safety Feedback
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (Terminal Protection)
- MOUNTING: 35mm DIN Rail
- OPERATING TEMPERATURE: -25°C to +60°C
- COMPATIBILITY/APPLICATION:
- APPLICATIONS: Emergency stop circuits, safety interlock systems, light curtain integration, motor control in safety-critical machinery, process safety systems.
- COMPATIBILITY: Designed for integration with Rockwell Automation GuardLogix and other safety PLCs, compliant with relevant international safety standards (e.g., IEC 60947-4-1, ISO 13849-1, IEC 62061).
