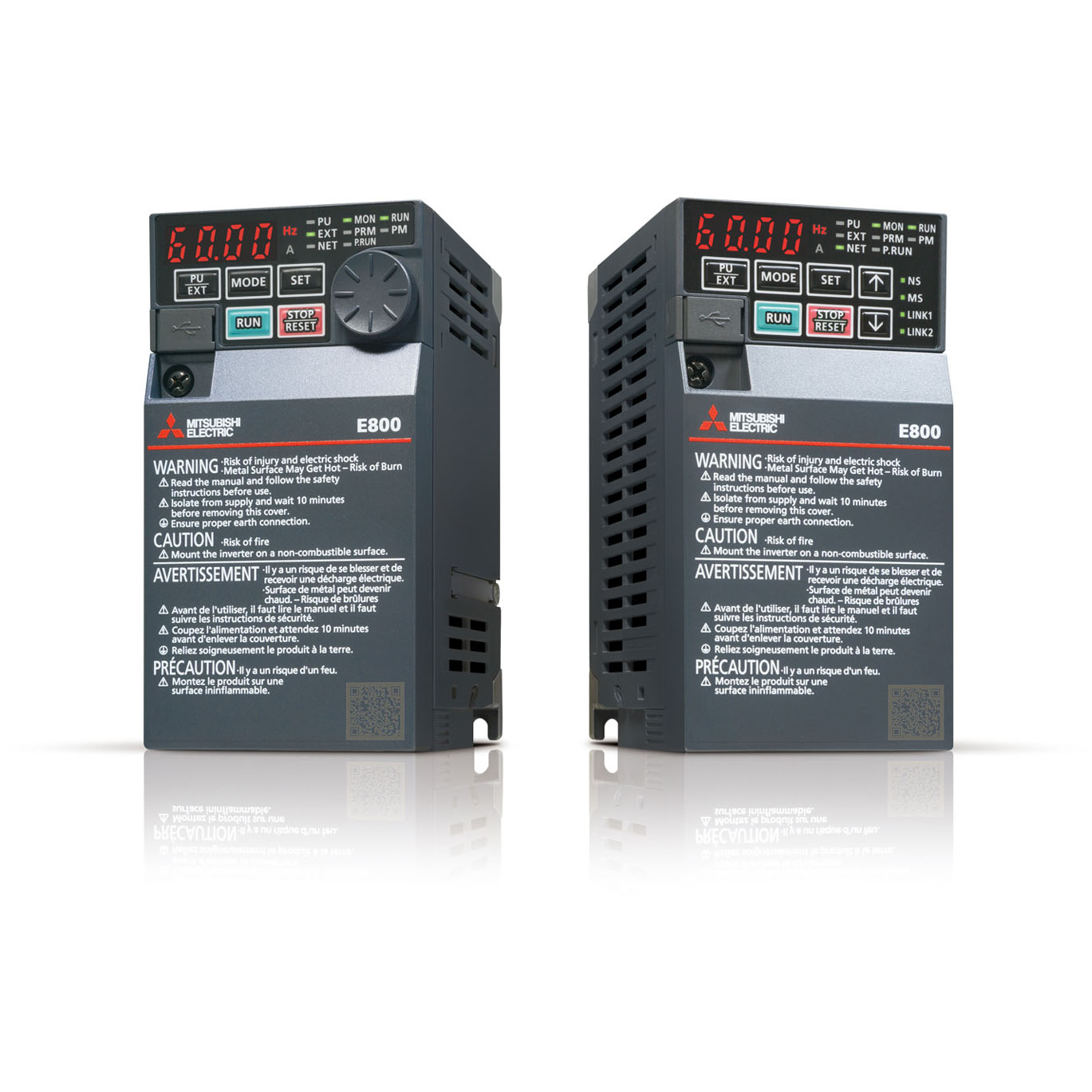

MITSUBISHI E840-0040EPA-60 - Variable Frequency Drive
The MITSUBISHI E840-0040EPA-60 is a compact, high-performance variable frequency drive from the FREQROL-E800 series, engineered for precise speed and torque control of three-phase induction and permanent magnet motors. This inverter integrates advanced sensorless vector control and built-in PLC functionality, making it suitable for a broad range of industrial applications including material handling, pumps, fans, and general machinery requiring robust motor control and energy efficiency. It supports various network protocols for seamless integration into modern automation architectures.
Technical Specifications:
- SERIES/FAMILY: FREQROL-E800 Series
- COMPONENT TYPE: Variable Frequency Drive (VFD) / AC Inverter
- ELECTRICAL SPECS:
- INPUT VOLTAGE: 3-Phase, 380-480VAC, 50/60 Hz
- OUTPUT VOLTAGE: 3-Phase, 380-480VAC (Variable)
- RATED OUTPUT POWER: 4.0 kW (5 HP)
- RATED OUTPUT CURRENT: Approximately 9.5 A (at 400V)
- OUTPUT FREQUENCY RANGE: 0.2 to 590 Hz
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Compact Panel Mount
- CONTROL METHOD: V/f Control, Advanced Magnetic Flux Vector Control, Sensorless Vector Control, PM Motor Control
- INTERFACE/CONTROL:
- COMMUNICATION PROTOCOL: Modbus RTU (Built-in) Optional cards for CC-Link IE Field Basic, EtherNet/IP, PROFINET, EtherCAT, DeviceNet, PROFIBUS-DP, CC-Link
- DIGITAL INPUTS: Configurable
- ANALOG INPUTS: Configurable
- RELAY OUTPUTS: Configurable
- FEEDBACK: Encoder feedback capability with optional interface
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (Standard Enclosure)
- COOLING METHOD: Forced Air Cooling (Fan)
- MOUNTING STYLE: Panel Mount
- OPERATING TEMPERATURE: 0 to 50 degrees Celsius
- COMPATIBILITY/APPLICATION: General industrial machinery, conveyors, pumps, fans, HVAC systems, material handling equipment, machine tools, and process control systems.
