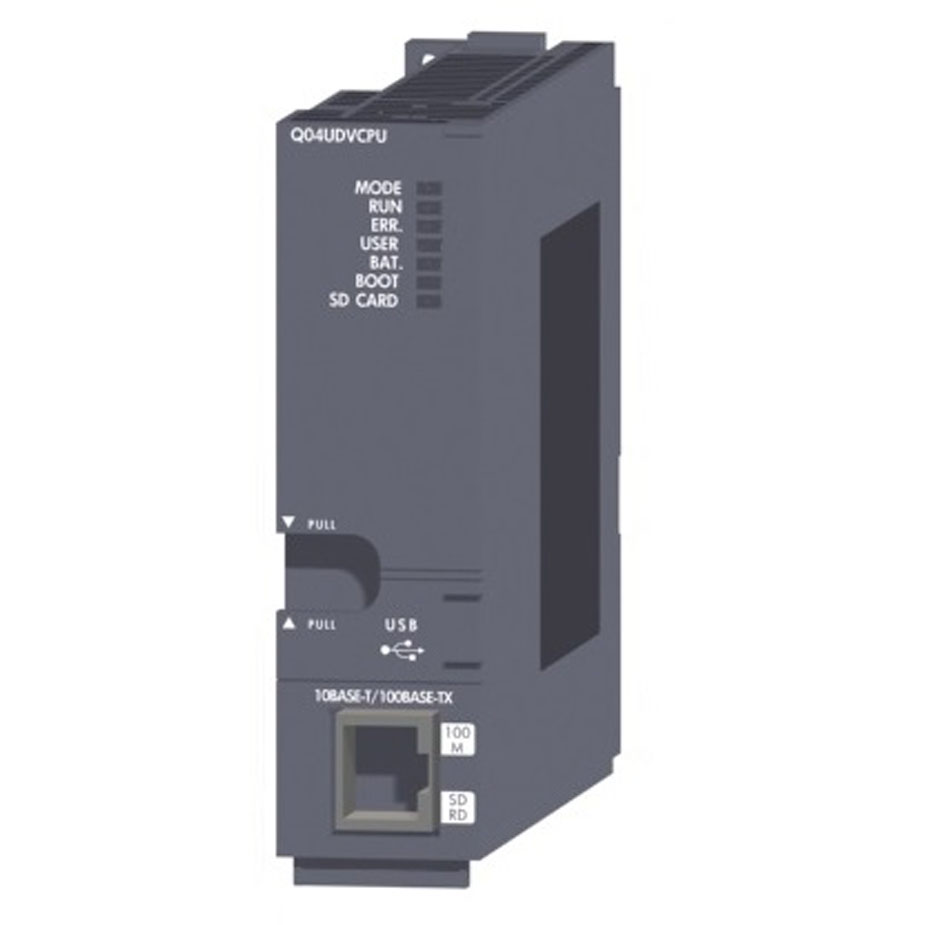

MITSUBISHI Q04UDVCPU - Universal Model High-Performance CPU Module
The MITSUBISHI Q04UDVCPU is a Universal Model High-Performance Central Processing Unit module designed for the MELSEC-Q Series programmable logic controller platform. It provides advanced logic control and data processing capabilities for complex industrial automation systems, supporting high-speed sequence control and multi-CPU configurations. This module is engineered for demanding applications requiring robust computational power, such as factory automation, process control, and integrated machine control.
Technical Specifications:
- SERIES/FAMILY: MELSEC-Q Series
- COMPONENT TYPE: Universal Model High-Performance CPU Module
- ELECTRICAL SPECS: Operates on backplane power supplied by the Q Series power supply module. Internal current consumption is approximately 0.35A at 5VDC from the backplane.
- MECHANICAL/PHYSICAL: Single-slot Q Series rack-mount module.
- INTERFACE/CONTROL:
- PROGRAM MEMORY: 40K steps
- PROCESSING SPEED: 10 ns/instruction (basic instruction)
- PROGRAMMING LANGUAGE: Ladder Diagram, Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC)
- COMMUNICATION PORTS: USB (for programming/monitoring), Ethernet (RJ45, for network communication and programming)
- SUPPORTED PROTOCOLS (via built-in Ethernet or optional modules): MELSEC Communication Protocol, SLMP (Seamless Message Protocol), Modbus/TCP, CC-Link IE Field Basic, PROFINET, EtherNet/IP
- I/O POINTS: Manages up to 4096 I/O points (depending on system configuration)
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (when installed in an appropriate enclosure)
- COOLING METHOD: Natural air convection
- MOUNTING STYLE: Q Series backplane slot mounting
- COMPATIBILITY/APPLICATION: MELSEC-Q Series base units, power supply modules, and I/O/special function modules. Suitable for high-speed discrete manufacturing, process control, robotics integration, and complex machine automation.
