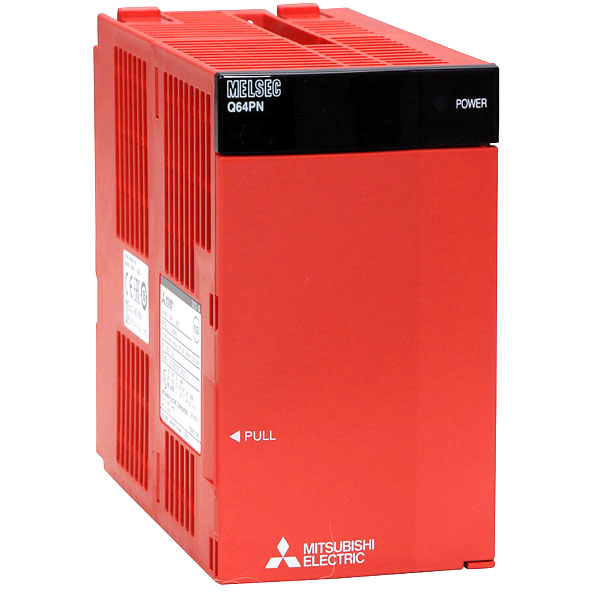

MITSUBISHI Q64PN - PROFINET Interface Module
The MITSUBISHI Q64PN is a dedicated PROFINET communication module designed for integration within the MELSEC-Q Series programmable logic controller platform. It functions as a PROFINET IO Device, facilitating high-speed, real-time data exchange with a PROFINET IO Controller in industrial Ethernet networks. This module enables robust and deterministic communication for distributed control systems in factory automation, process control, and advanced machine building applications.
Technical Specifications:
- SERIES/FAMILY: MELSEC-Q Series
- COMPONENT TYPE: PROFINET Interface Module
- ELECTRICAL SPECS:
- INTERNAL CURRENT CONSUMPTION: 0.6A at 5VDC
- POWER SUPPLY: Internal via MELSEC-Q Series backplane
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Single-slot MELSEC-Q Series module
- MOUNTING: Backplane slot
- INTERFACE/CONTROL:
- COMMUNICATION PROTOCOL: PROFINET IO (RT and IRT capable)
- NETWORK INTERFACE: 2x RJ45 ports (integrated switch for line topology)
- DATA RATE: 100 Mbps (Fast Ethernet)
- FUNCTIONALITY: PROFINET IO Device
- I/O DATA CAPACITY: Configurable, up to 1024 bytes input / 1024 bytes output
- INDICATORS: LED status for RUN, ERROR, LINK/ACT
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20
- COOLING METHOD: Natural air convection
- OPERATING TEMPERATURE: 0 to 55 degrees Celsius
- STORAGE TEMPERATURE: -20 to 75 degrees Celsius
- HUMIDITY: 10 to 90% RH, non-condensing
- COMPATIBILITY/APPLICATION:
- COMPATIBLE PLATFORM: MITSUBISHI MELSEC-Q Series PLCs
- ENGINEERING SOFTWARE: GX Works2, GX Works3
- TARGET APPLICATIONS: Industrial Ethernet integration, distributed I/O systems, machine automation, process control, factory automation networks
