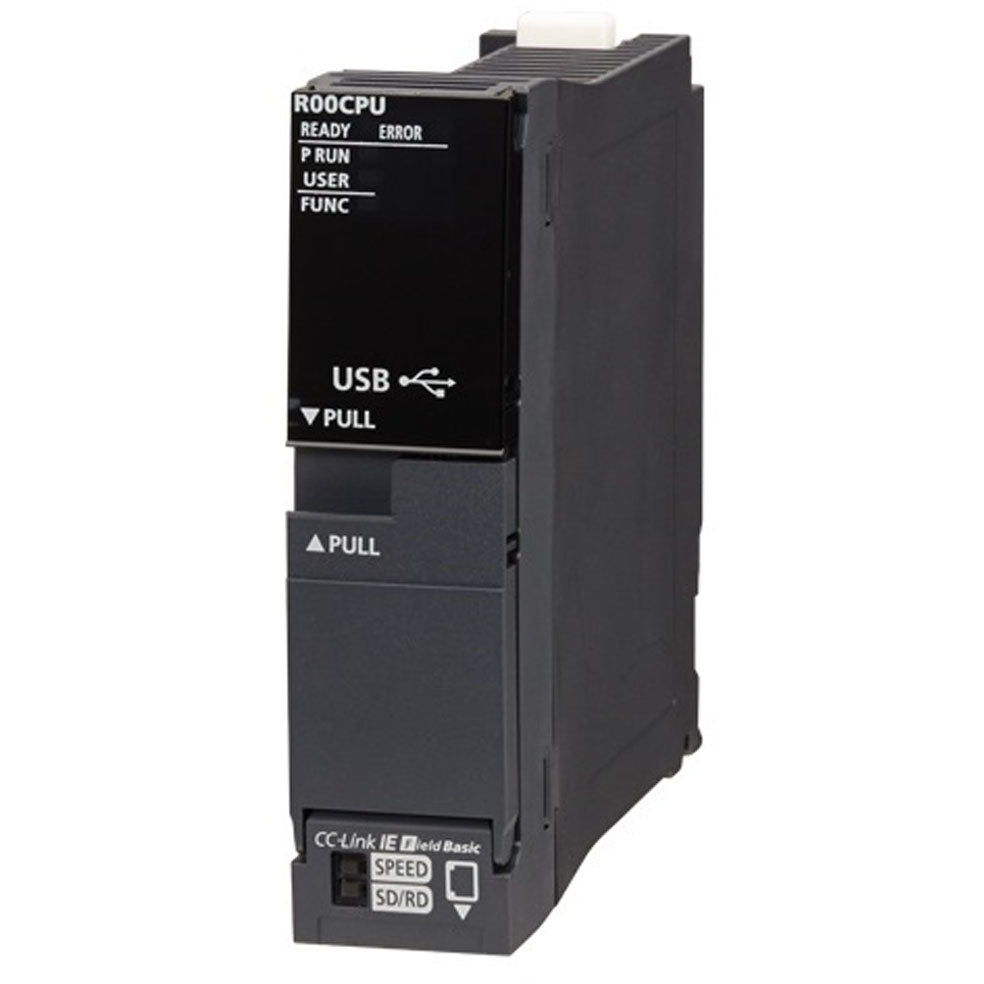

MITSUBISHI R00CPU-C - Programmable Logic Controller CPU Module
The MITSUBISHI R00CPU-C is a central processing unit module for the MELSEC iQ-R Series programmable automation controller platform. It provides fundamental logic execution and system control for industrial automation applications, integrating with various I/O, motion, and network modules via the iQ-R backplane. This module is engineered for robust performance in discrete manufacturing, process control, and machine automation systems requiring reliable sequential and process control.
Technical Specifications:
- SERIES/FAMILY: MELSEC iQ-R Series
- COMPONENT TYPE: Programmable Logic Controller CPU Module
- ELECTRICAL SPECS:
- POWER CONSUMPTION: 0.8A (5VDC from backplane)
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Single-slot module for iQ-R Series base unit
- INTERFACE/CONTROL:
- PROGRAM CAPACITY: 10K steps
- PROCESSING SPEED: 0.98 ns/instruction (LD instruction)
- I/O POINTS: 4096 points (max)
- BUILT-IN NETWORKS: Ethernet (1 port, 100BASE-TX), CC-Link IE Field Network Basic (1 port)
- PROGRAMMING LANGUAGE: Ladder Diagram, Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC)
- MEMORY: Standard ROM, SRAM for program and device memory
- ENVIRONMENTAL/MOUNTING:
- MOUNTING STYLE: Backplane mounted on iQ-R Series base unit
- COOLING METHOD: Natural air cooling
- OPERATING TEMPERATURE: 0 to 55 degrees Celsius
- COMPATIBILITY/APPLICATION:
- COMPATIBLE PLATFORM: MITSUBISHI MELSEC iQ-R Series Base Units
- TARGET APPLICATIONS: Discrete manufacturing, small to medium-scale process control, general machine automation, material handling, packaging machinery.
