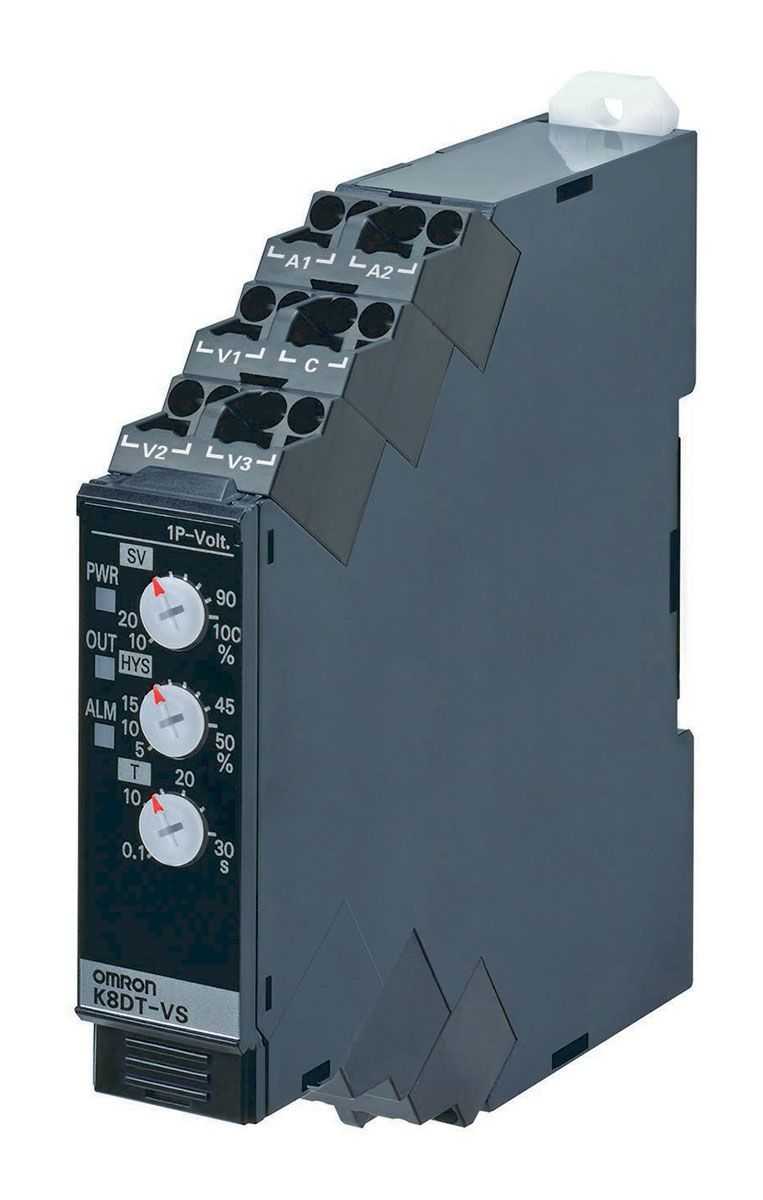

OMRON K8DT-VS3CD - Single-Phase Voltage Monitoring Relay
The OMRON K8DT-VS3CD is a single-phase voltage monitoring relay from the K8DT series, designed for reliable detection of overvoltage and undervoltage conditions in industrial control systems. It provides continuous supervision of AC power lines, safeguarding critical equipment such as motors, pumps, and heaters by activating a relay output upon deviation from user-defined voltage thresholds.
Technical Specifications:
- SERIES/FAMILY: K8DT
- COMPONENT TYPE: Single-Phase Voltage Monitoring Relay
- ELECTRICAL SPECS:
- MONITORING VOLTAGE RANGE: 24 to 240 VAC
- SUPPLY VOLTAGE RANGE: 24 to 240 VAC/VDC
- OUTPUT TYPE: 1 C/O (SPDT) Relay Output
- OUTPUT RATING: 5A at 250VAC (Resistive Load)
- MONITORING FUNCTION: Overvoltage and Undervoltage Detection
- INTERFACE/CONTROL:
- SETTINGS: Adjustable Voltage Thresholds, Adjustable Hysteresis (1 to 30%), Adjustable Response Time (0.1 to 30 seconds)
- INDICATORS: LED Status Indicators for Power and Output Status
- ENVIRONMENTAL/MOUNTING:
- MOUNTING STYLE: 35mm DIN Rail Mount
- PROTECTION RATING: IP40 (Front Panel), IP20 (Terminal Block)
- OPERATING TEMPERATURE: -20 to +60 degrees C
- COMPATIBILITY/APPLICATION:
- APPLICATIONS: Motor protection, pump control, heater monitoring, power supply supervision, general industrial control panels, and machinery requiring voltage anomaly detection.
