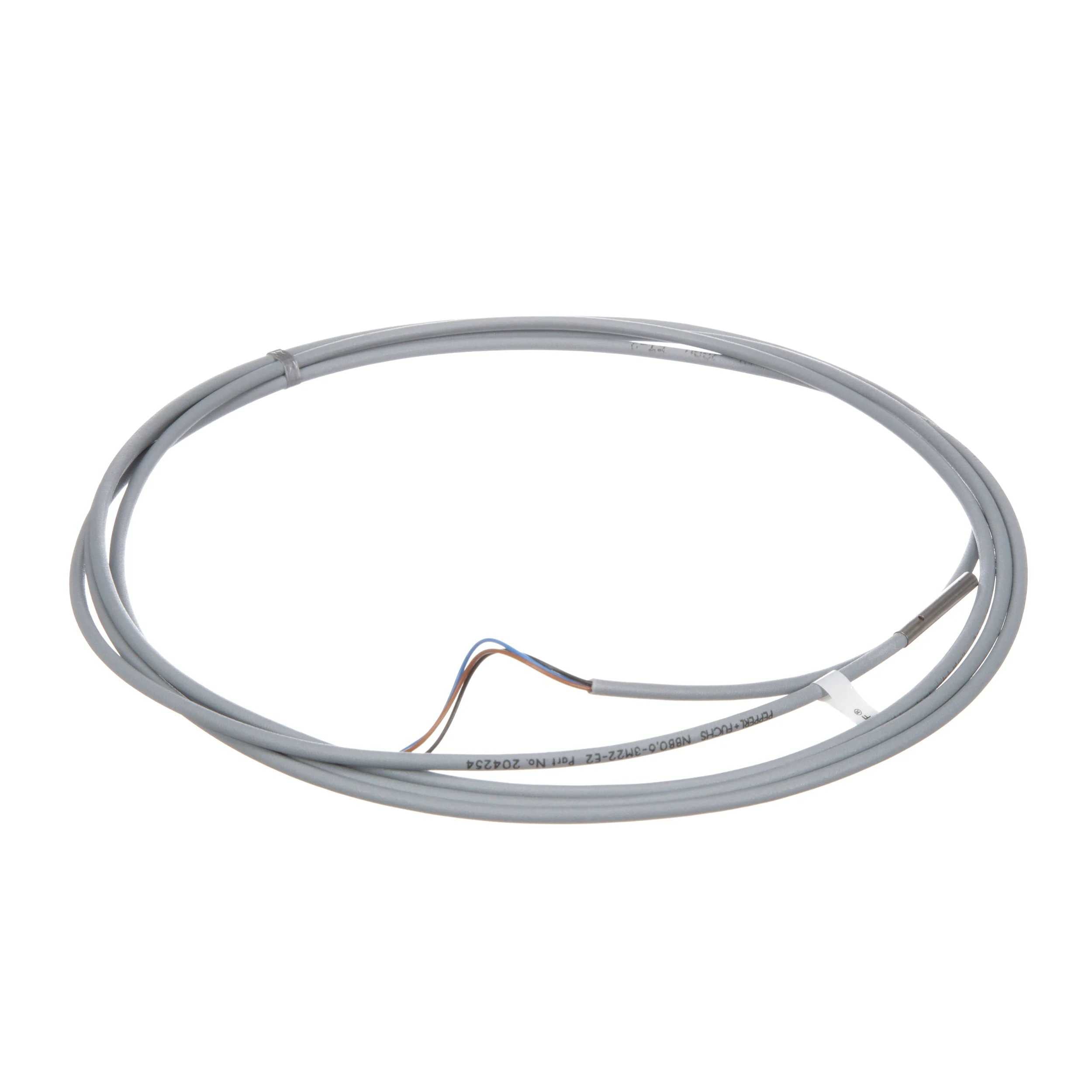

PEPPERL & FUCHS 204254 - Inductive Proximity Sensor
An industrial inductive proximity sensor from PEPPERL & FUCHS, engineered for non-contact, wear-free detection of metallic targets in automated industrial environments. It provides a stable, repeatable switching output for precise position sensing and presence detection, integrating seamlessly into PLC-controlled systems for machine automation, material handling, and assembly applications.
Technical Specifications:
- SERIES/FAMILY: Standard Industrial Series
- COMPONENT TYPE: Inductive Proximity Sensor
- ELECTRICAL SPECS:
- OPERATING VOLTAGE: 10-30VDC
- OUTPUT TYPE: PNP Normally Open (NO)
- SWITCHING FREQUENCY: 1000 Hz
- NO-LOAD CURRENT: <10 mA
- OUTPUT CURRENT: 200 mA (Max)
- MECHANICAL/PHYSICAL:
- SENSING DISTANCE: 4 mm
- MOUNTING: Flush
- HOUSING MATERIAL: Nickel-plated brass
- FORM FACTOR: M12 Cylindrical Threaded Barrel
- INTERFACE/CONTROL:
- CONNECTION TYPE: M12 Connector, 4-pin
- OUTPUT FUNCTION: Switching output
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP67
- OPERATING TEMPERATURE: -25 to +70 degrees C
- MOUNTING STYLE: Threaded barrel with securing nuts for panel or bracket mounting
- COMPATIBILITY/APPLICATION:
- TARGET SYSTEMS: Programmable Logic Controllers (PLCs), industrial controllers, relay circuits
- APPLICATIONS: Position detection, end-of-travel sensing, object presence detection, counting applications in manufacturing, packaging, and assembly lines
