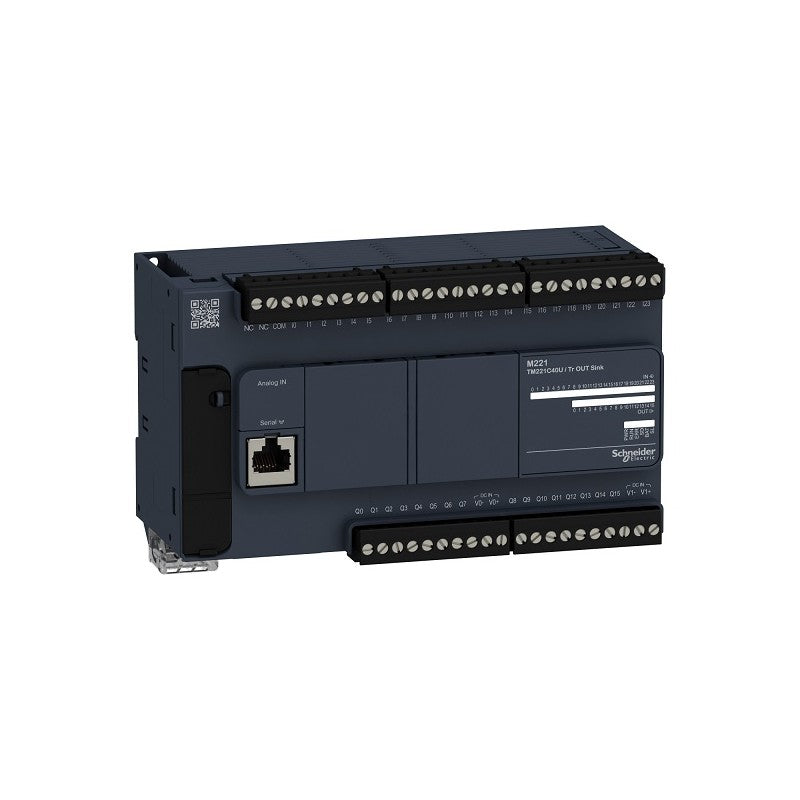

SCHNEIDER ELECTRIC TM221C40U - Modicon M221 Compact Logic Controller
This device is a Modicon M221 series compact programmable logic controller designed for discrete and process control in industrial automation. It integrates a central processing unit with embedded digital input and relay output capabilities, facilitating sequential control, data acquisition, and communication for standalone machines and small to medium-scale automation systems. The controller supports standard industrial communication protocols for integration into supervisory control architectures and is programmed via SoMachine Basic software.
Technical Specifications:
- SERIES/FAMILY: Modicon M221
- COMPONENT TYPE: Logic Controller (Compact CPU)
- ELECTRICAL SPECS:
- NOMINAL SUPPLY VOLTAGE: 24VDC
- DIGITAL INPUT VOLTAGE: 24VDC
- DIGITAL OUTPUT TYPE: Relay
- DIGITAL OUTPUT CURRENT: 2A per output
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Compact, DIN rail mountable
- I/O POINTS: 40 total (24 digital inputs, 16 digital outputs)
- INTERFACE/CONTROL:
- PROGRAMMING PORT: USB Type B
- COMMUNICATION PORTS: Ethernet (Modbus TCP/IP), Serial (Modbus RTU/ASCII)
- EMBEDDED I/O: Digital inputs, Digital outputs
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (for control cabinet installation)
- COOLING METHOD: Natural convection
- MOUNTING STYLE: 35mm DIN rail
- COMPATIBILITY/APPLICATION:
- PROGRAMMING SOFTWARE: SoMachine Basic
- TARGET APPLICATIONS: Small to medium-sized machines, material handling, packaging, pumping, HVAC systems, general discrete control.
