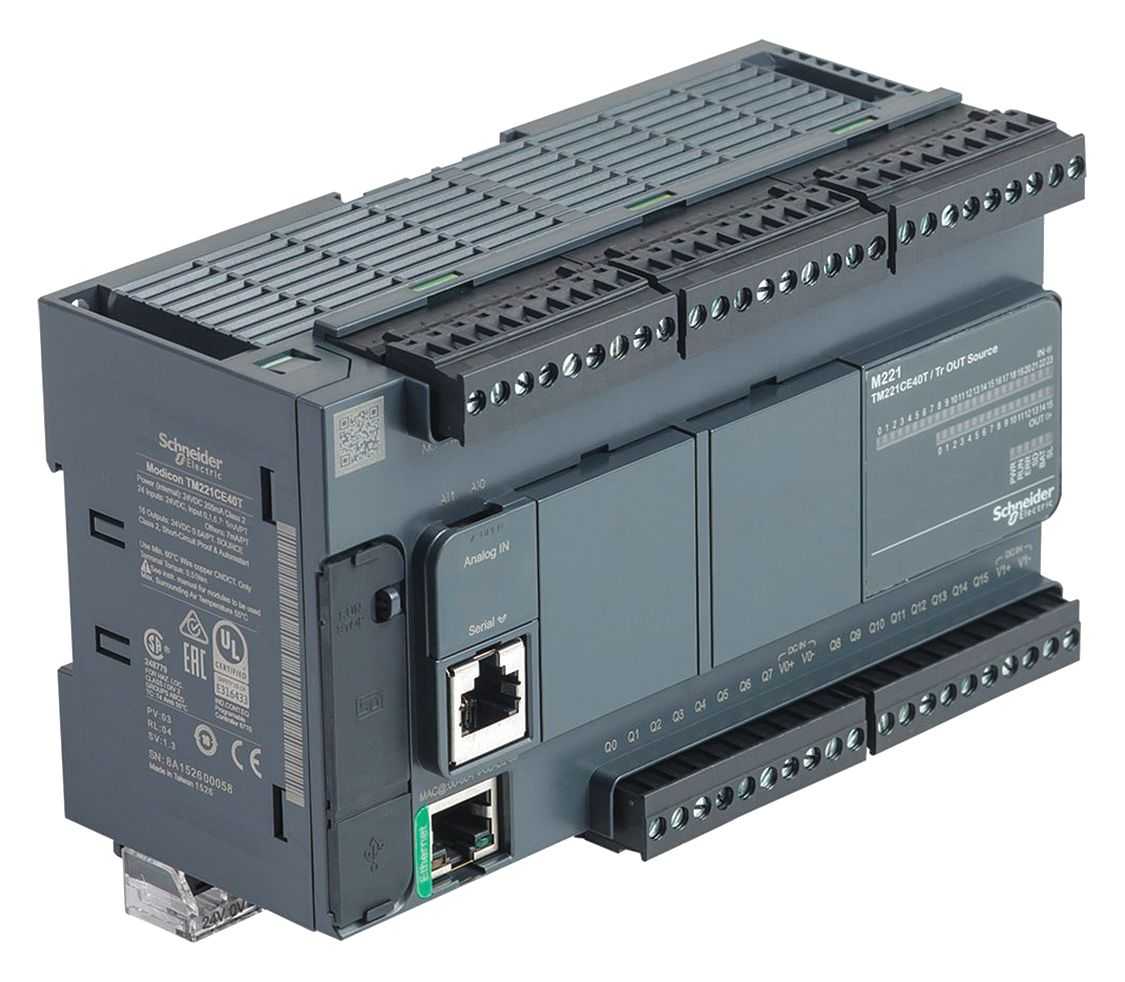

SCHNEIDER ELECTRIC TM221CE40T - Programmable Logic Controller
The SCHNEIDER ELECTRIC TM221CE40T is a Modicon M221 series compact programmable logic controller designed for discrete control applications in industrial automation. This unit integrates 40 I/O points, an embedded Ethernet port, and transistor outputs, providing a robust solution for small to medium-sized machines, standalone systems, and distributed control architectures. It facilitates precise control and communication for applications such as material handling, packaging, pumping, and HVAC systems.
Technical Specifications:
- SERIES/FAMILY: Modicon M221
- COMPONENT TYPE: Programmable Logic Controller (PLC)
- ELECTRICAL SPECS:
- NOMINAL SUPPLY VOLTAGE: 100-240VAC
- SUPPLY VOLTAGE RANGE: 85-264VAC
- DIGITAL INPUT VOLTAGE: 24VDC
- DIGITAL INPUT TYPE: Sink/Source
- DIGITAL OUTPUT TYPE: Transistor (PNP)
- DIGITAL OUTPUT VOLTAGE: 24VDC
- DIGITAL OUTPUT CURRENT: 0.5A per channel
- POWER CONSUMPTION: 34VA at 100VAC, 37VA at 240VAC
- MECHANICAL/PHYSICAL:
- I/O POINTS: 40
- DIGITAL INPUTS: 24
- DIGITAL OUTPUTS: 16
- FORM FACTOR: Compact
- INTERFACE/CONTROL:
- COMMUNICATION PORTS: 1x Ethernet (RJ45), 1x Serial (RS-232/RS-485)
- ETHERNET PROTOCOL: Modbus TCP/IP
- SERIAL PROTOCOLS: Modbus RTU/ASCII
- PROGRAMMING SOFTWARE: EcoStruxure Machine Expert - Basic
- EMBEDDED FUNCTIONS: High-Speed Counters (HSC), Pulse Train Output (PTO), PID Control
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20
- MOUNTING: DIN rail
- OPERATING TEMPERATURE: 0 to 55 degrees C (horizontal installation)
- STORAGE TEMPERATURE: -25 to 70 degrees C
- COOLING METHOD: Natural convection
- COMPATIBILITY/APPLICATION:
- TARGET APPLICATIONS: Small to medium-sized machines, material handling, packaging, pumping, HVAC, textile machinery, standalone systems.
- COMPATIBLE MODULES: Modicon TM3 expansion modules for additional I/O and specialized functions.
