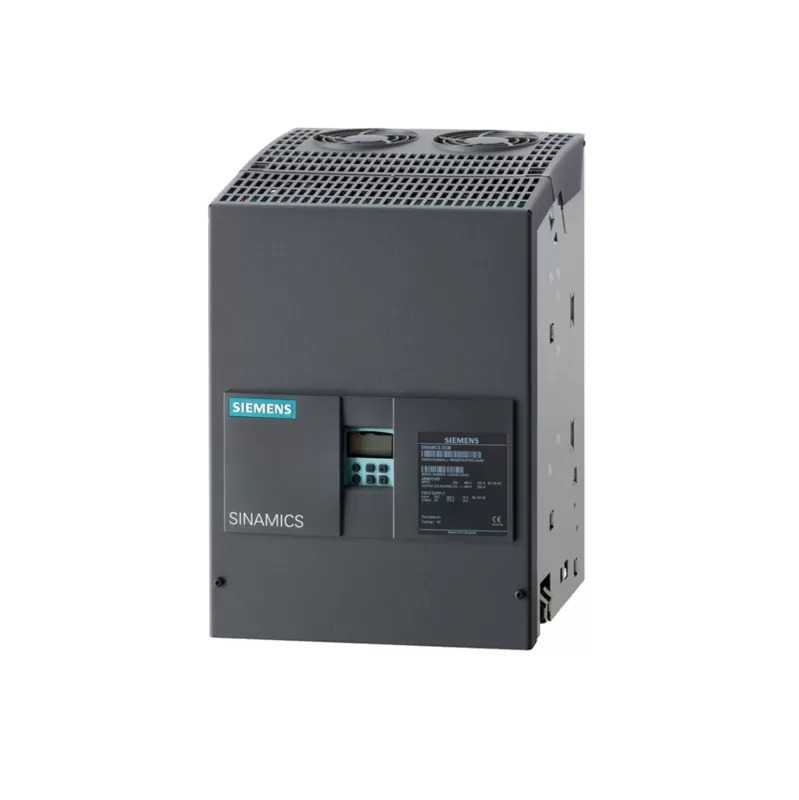

SIEMENS 6RA8028-6FV62-0AA0 - Regenerative DC Converter
The SIEMENS 6RA8028-6FV62-0AA0 is a high-performance SINAMICS DC MASTER regenerative DC converter designed for precise speed and torque control of DC motors in demanding industrial environments. This module integrates advanced control algorithms for applications requiring high dynamic response and energy efficiency, including rolling mills, extruders, and crane systems. It provides full four-quadrant operation, enabling both motoring and regenerative braking capabilities.
Technical Specifications:
- SERIES/FAMILY: SINAMICS DC MASTER (6RA80)
- COMPONENT TYPE: Regenerative DC Converter / DC Drive Module
- ELECTRICAL SPECS:
- INPUT VOLTAGE: 3-phase 690VAC (50/60 Hz)
- OUTPUT CURRENT: 620A DC
- OUTPUT POWER: Approximately 527kW (based on typical 850VDC output)
- INPUT PHASE: 3-phase AC
- OUTPUT TYPE: DC
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Cabinet-mounted power module
- FRAME SIZE: 28 (indicates specific physical dimensions and power handling)
- INTERFACE/CONTROL:
- COMMUNICATION PROTOCOLS: Integrated PROFIBUS DP PROFINET, EtherNet/IP, Modbus TCP via optional communication modules
- I/O: Configurable digital and analog inputs/outputs
- FEEDBACK: Supports various encoder types for speed and position control
- CONTROL METHOD: Fully digital, four-quadrant operation
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP00 (for module), IP20 (for front panel when installed in cabinet)
- COOLING METHOD: Forced air cooling (integrated fans)
- MOUNTING STYLE: Cabinet installation
- COMPATIBILITY/APPLICATION:
- TARGET SYSTEMS: DC motor applications requiring high dynamic performance and regenerative braking
- SPECIFIC MACHINE TYPES: Rolling mills, extruders, winders, paper machines, cranes, test stands, centrifuges, and other heavy industrial machinery
