ALLEN BRADLEY - 2090-CFBM7DD-CEAA04 - Servo Cables & Accessories
2090-CFBM7DD-CEAA04 ALLEN BRADLEY

ALLEN BRADLEY
Condition
 New Sealed

The product is an item that has never been used and was obtained through a surplus supplier.

  • Never used in a production environment, but it may have been powered on for testing
  • No visible signs of handling, use, or damage
  • Includes the original packaging, if applicable
  • May or may not have the original manufacturer's seal on the box. The original manufacturer's warranty may not be applicable.
  • Includes all hardware and accessories present in the factory new version of the product
  • May or may not include the instructions present in the factory new version of the product
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers
  • Products may vary by country of origin and by language used on the packaging
  • The product packaging may show signs of shelf wear
 New BAS

The product is an item that has never been used and has been sourced from an excess supplier.

  • Never used in a production environment, but it may have been powered on for testing.
  • The product may show slight superficial signs of handling, but no signs of use or damage.
  • It may or may not have the original packaging. If the original packaging is not available, the product will generally be packaged in aftermarket packaging or branded BAS.
  • Hardware, accessories, or instructions present in the factory new version of the product may be missing. The manufacturer's warranty may not apply.
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers.
  • Products may vary by country of origin and by language used on the packaging.
  • The packaging may contain markings not from the original manufacturer (OEM).
 New Fast Delivery

The product is an item that has never been used and was obtained through a surplus supplier.

  • Never used in a production environment, but it may have been powered on for testing
  • No visible signs of handling, use, or damage
  • Includes the original packaging, if applicable
  • May or may not have the original manufacturer's seal on the box. The original manufacturer's warranty may not be applicable.
  • Includes all hardware and accessories present in the factory new version of the product
  • May or may not include the instructions present in the factory new version of the product
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers
  • Products may vary by country of origin and by language used on the packaging
  • The product packaging may show signs of shelf wear
  • Faster shipping
Request information for 2090-CFBM7DD-CEAA04 ALLEN BRADLEY

PRODUCT DESCRIPTION

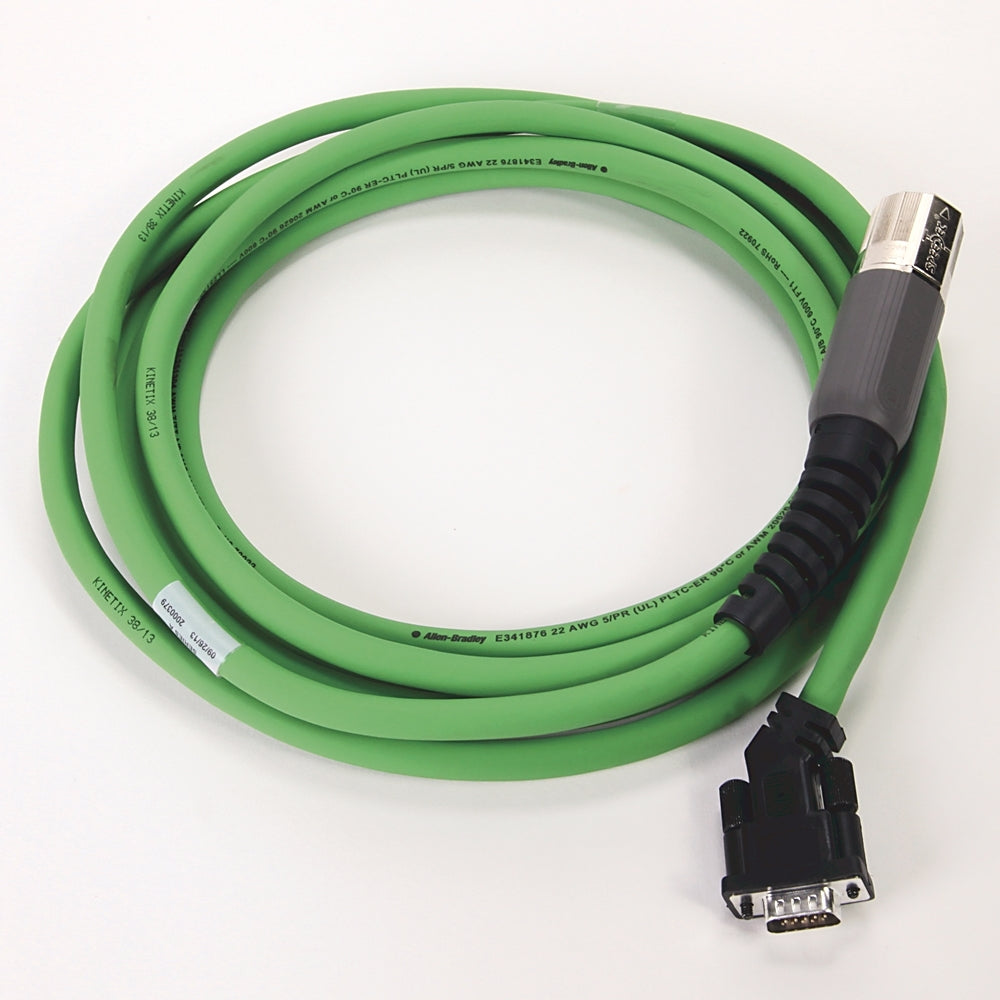

ALLEN BRADLEY 2090-CFBM7DD-CEAA04 - Kinetix Feedback Cable Assembly

This Kinetix 2090 series cable assembly is engineered for the transmission of feedback signals from servo motors to ALLEN BRADLEY Kinetix servo drives. It provides the critical data link for closed-loop position and velocity control in high-performance industrial automation systems. The assembly is designed for robust operation in applications such as precision robotics, CNC machining, and automated material handling.

Technical Specifications:

  • SERIES/FAMILY: Kinetix 2090 Cable Series
  • COMPONENT TYPE: Feedback Cable Assembly
  • ELECTRICAL SPECS:
    • SIGNAL INTEGRITY: Optimized for low-voltage differential and single-ended feedback signals
    • SHIELDING: Multi-layer shielding (braided and/or foil) for electromagnetic interference (EMI) suppression
    • CONDUCTORS: Multiple twisted-pair conductors for signal integrity and noise reduction
  • MECHANICAL/PHYSICAL:
    • CABLE LENGTH: 7 meters
    • MOTOR END CONNECTOR: M23 Circular Connector, 17-pin (standard for Kinetix servo motor feedback)
    • DRIVE END CONNECTOR: D-sub 15-pin Connector (standard for Kinetix 5000/6000/7000 series drives)
    • CABLE JACKET MATERIAL: Industrial-grade PVC or PUR (resistant to oils, coolants, and abrasion)
    • FLEXIBILITY: Standard flex rating (suitable for fixed installations or applications with limited, non-continuous motion)
  • INTERFACE/CONTROL:
    • FEEDBACK PROTOCOL COMPATIBILITY: Supports common industrial feedback types including Incremental, Resolver, SSI, EnDat, and Hiperface (dependent on motor encoder and drive configuration)
    • PINOUT CONFIGURATION: Specific to the '04' suffix, ensuring compatibility with designated Kinetix servo motors and drives
  • ENVIRONMENTAL/MOUNTING:
    • IP RATING: IP65/IP67 (when connectors are fully mated and sealed, typical for industrial M23 and D-sub connectors)
    • OPERATING TEMPERATURE RANGE: -20°C to +80°C (typical for industrial automation cables)
    • MOUNTING: Direct plug-and-play connection between servo motor and drive
  • COMPATIBILITY/APPLICATION:
    • TARGET SYSTEMS: ALLEN BRADLEY Kinetix Servo Drives (e.g., Kinetix 5100, 5300, 5500, 5700, 6000, 6200, 6500, 7000 series)
    • COMPATIBLE MOTORS: ALLEN BRADLEY Kinetix Servo Motors equipped with M23 feedback connectors (e.g., VPL, VP-Series)
    • INDUSTRIAL APPLICATIONS: Precision motion control, robotics, packaging machinery, material handling systems, machine tools, and general factory automation.

1 year warranty
