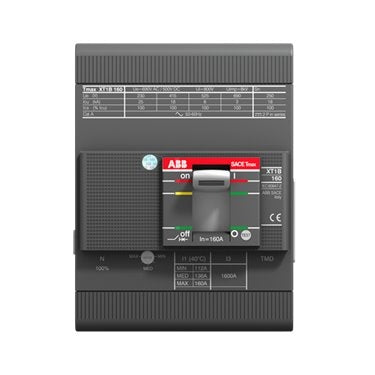

ASEA BROWN BOVERI - 1SDA067405R1 - MCCB (Molded Case Circuit Breakers)
1SDA067405R1 ASEA BROWN BOVERI

ASEA BROWN BOVERI
Condition
 New Sealed

The product is an item that has never been used and was obtained through a surplus supplier.

  • Never used in a production environment, but it may have been powered on for testing
  • No visible signs of handling, use, or damage
  • Includes the original packaging, if applicable
  • May or may not have the original manufacturer's seal on the box. The original manufacturer's warranty may not be applicable.
  • Includes all hardware and accessories present in the factory new version of the product
  • May or may not include the instructions present in the factory new version of the product
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers
  • Products may vary by country of origin and by language used on the packaging
  • The product packaging may show signs of shelf wear
 New BAS

The product is an item that has never been used and has been sourced from an excess supplier.

  • Never used in a production environment, but it may have been powered on for testing.
  • The product may show slight superficial signs of handling, but no signs of use or damage.
  • It may or may not have the original packaging. If the original packaging is not available, the product will generally be packaged in aftermarket packaging or branded BAS.
  • Hardware, accessories, or instructions present in the factory new version of the product may be missing. The manufacturer's warranty may not apply.
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers.
  • Products may vary by country of origin and by language used on the packaging.
  • The packaging may contain markings not from the original manufacturer (OEM).
 New Fast Delivery

The product is an item that has never been used and was obtained through a surplus supplier.

  • Never used in a production environment, but it may have been powered on for testing
  • No visible signs of handling, use, or damage
  • Includes the original packaging, if applicable
  • May or may not have the original manufacturer's seal on the box. The original manufacturer's warranty may not be applicable.
  • Includes all hardware and accessories present in the factory new version of the product
  • May or may not include the instructions present in the factory new version of the product
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers
  • Products may vary by country of origin and by language used on the packaging
  • The product packaging may show signs of shelf wear
  • Faster shipping
Request information for 1SDA067405R1 ASEA BROWN BOVERI

PRODUCT DESCRIPTION

ASEA BROWN BOVERI 1SDA067405R1 - Molded Case Circuit Breaker

This component is an ABB Tmax XT2N series molded case circuit breaker, engineered for robust electrical circuit protection in industrial and commercial applications. It integrates a thermal-magnetic trip unit to provide reliable overload and instantaneous short-circuit protection for conductors, motors, and other electrical loads. Designed for fixed front mounting, this device ensures operational continuity and system integrity within power distribution panels and machinery control systems.

Technical Specifications:

  • SERIES/FAMILY: Tmax XT2N
  • COMPONENT TYPE: Molded Case Circuit Breaker (MCCB)
  • ELECTRICAL SPECS:
    • NOMINAL CURRENT (In): 160A
    • POLES: 3-pole
    • RATED OPERATIONAL VOLTAGE (Ue): 690VAC (Maximum)
    • RATED INSULATION VOLTAGE (Ui): 1000V
    • RATED IMPULSE WITHSTAND VOLTAGE (Uimp): 8kV
    • RATED SHORT-CIRCUIT BREAKING CAPACITY (Icu): 36kA at 400VAC (Typical for XT2N)
  • MECHANICAL/PHYSICAL:
    • MOUNTING TYPE: Fixed Front
    • FRAME SIZE: XT2 (Up to 160A)
    • NUMBER OF MODULES: 3
  • INTERFACE/CONTROL:
    • TRIP UNIT TYPE: Thermal Magnetic (TMD)
    • THERMAL PROTECTION ADJUSTMENT (Ir): 0.7 to 1.0 x In
    • MAGNETIC PROTECTION ADJUSTMENT (Ii): 5 to 10 x In
  • ENVIRONMENTAL/MOUNTING:
    • IP RATING: IP20 (Terminals), IP40 (Front with accessories)
    • COOLING METHOD: Natural Convection
    • MOUNTING STYLE: Fixed, Front-Mounted
  • COMPATIBILITY/APPLICATION:
    • APPLICATIONS: Industrial power distribution, motor control centers, machinery protection, commercial electrical panels, HVAC systems.
    • COMPATIBILITY: Compatible with ABB Tmax XT series auxiliary contacts, shunt trips, undervoltage releases, and motor operators.
