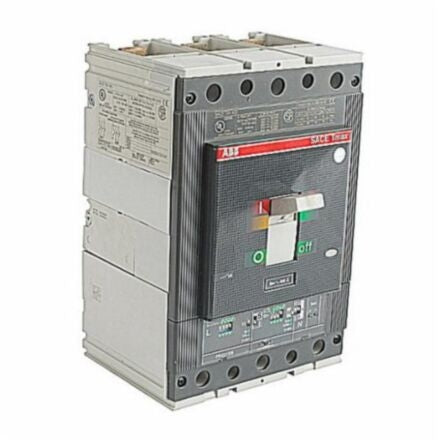

ASEA BROWN BOVERI - 1SDA074641R1 - MCCB (Molded Case Circuit Breakers)
1SDA074641R1 ASEA BROWN BOVERI

ASEA BROWN BOVERI
Condition
 New Sealed

The product is an item that has never been used and was obtained through a surplus supplier.

  • Never used in a production environment, but it may have been powered on for testing
  • No visible signs of handling, use, or damage
  • Includes the original packaging, if applicable
  • May or may not have the original manufacturer's seal on the box. The original manufacturer's warranty may not be applicable.
  • Includes all hardware and accessories present in the factory new version of the product
  • May or may not include the instructions present in the factory new version of the product
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers
  • Products may vary by country of origin and by language used on the packaging
  • The product packaging may show signs of shelf wear
 New BAS

The product is an item that has never been used and has been sourced from an excess supplier.

  • Never used in a production environment, but it may have been powered on for testing.
  • The product may show slight superficial signs of handling, but no signs of use or damage.
  • It may or may not have the original packaging. If the original packaging is not available, the product will generally be packaged in aftermarket packaging or branded BAS.
  • Hardware, accessories, or instructions present in the factory new version of the product may be missing. The manufacturer's warranty may not apply.
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers.
  • Products may vary by country of origin and by language used on the packaging.
  • The packaging may contain markings not from the original manufacturer (OEM).
 New Fast Delivery

The product is an item that has never been used and was obtained through a surplus supplier.

  • Never used in a production environment, but it may have been powered on for testing
  • No visible signs of handling, use, or damage
  • Includes the original packaging, if applicable
  • May or may not have the original manufacturer's seal on the box. The original manufacturer's warranty may not be applicable.
  • Includes all hardware and accessories present in the factory new version of the product
  • May or may not include the instructions present in the factory new version of the product
  • The product may have older date or serial codes compared to those available directly from the manufacturer or authorized retailers
  • Products may vary by country of origin and by language used on the packaging
  • The product packaging may show signs of shelf wear
  • Faster shipping
Request information for 1SDA074641R1 ASEA BROWN BOVERI

PRODUCT DESCRIPTION

ASEA BROWN BOVERI 1SDA074641R1 - Molded Case Circuit Breaker

The ABB SACE Tmax XT2N 160 TMD 3p F F is a compact, three-pole molded case circuit breaker engineered for reliable overcurrent and short-circuit protection within industrial and commercial electrical distribution systems. This device integrates a fixed thermal-magnetic trip unit, providing consistent circuit interruption and equipment safeguarding for applications such as motor control, generator protection, and general load circuits. Its fixed mounting and front terminal configuration ensure direct integration into switchboards and control panels.

Technical Specifications:

  • SERIES/FAMILY: SACE Tmax XT2N
  • COMPONENT TYPE: Molded Case Circuit Breaker (MCCB)
  • ELECTRICAL SPECS:
    • NOMINAL CURRENT (In): 160A
    • NUMBER OF POLES: 3
    • TRIP UNIT TYPE: Thermal Magnetic (TMD)
    • RATED OPERATIONAL VOLTAGE (Ue): 690VAC
    • RATED INSULATION VOLTAGE (Ui): 1000V
    • RATED IMPULSE WITHSTAND VOLTAGE (Uimp): 8kV
    • RATED ULTIMATE SHORT-CIRCUIT BREAKING CAPACITY (Icu): 36kA at 400VAC
    • RATED SERVICE SHORT-CIRCUIT BREAKING CAPACITY (Ics): 36kA at 400VAC
    • FREQUENCY: 50/60 Hz
  • MECHANICAL/PHYSICAL:
    • MOUNTING TYPE: Fixed
    • TERMINAL TYPE: Front
    • FRAME SIZE: XT2
    • OPERATING MECHANISM: Toggle
    • FORM FACTOR: Compact Molded Case
  • INTERFACE/CONTROL:
    • TRIP UNIT ADJUSTMENT: Fixed Thermal, Fixed Magnetic
    • INDICATORS: Trip indication
  • ENVIRONMENTAL/MOUNTING:
    • PROTECTION DEGREE: IP20 (with terminal covers)
    • OPERATING TEMPERATURE RANGE: -25 to +70 degrees C
    • STORAGE TEMPERATURE RANGE: -40 to +85 degrees C
    • MOUNTING POSITION: Any
  • COMPATIBILITY/APPLICATION:
    • APPLICATIONS: Industrial power distribution, commercial power distribution, motor protection, generator protection, general circuit protection.
    • STANDARDS COMPLIANCE: IEC 60947-2

1 year warranty

HS CODE

85362090

DELIVERY TIME

10 working days
