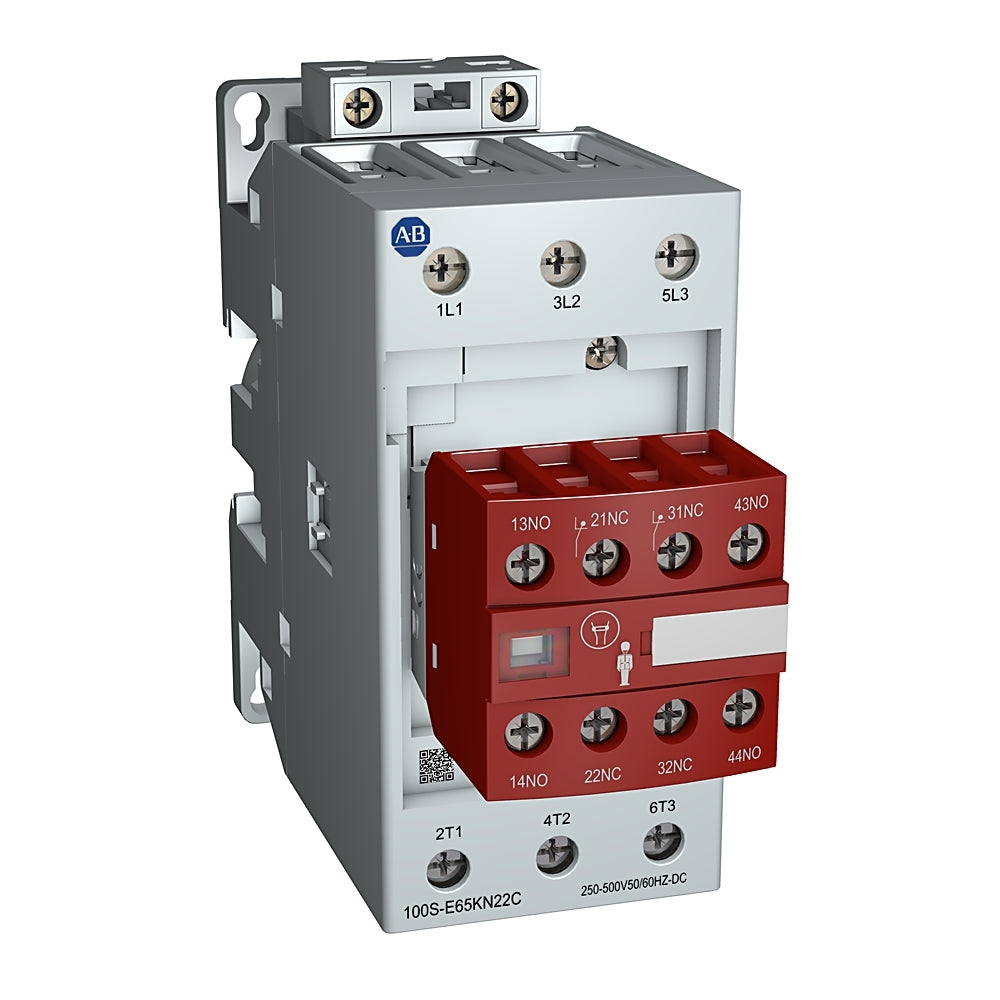

ALLEN BRADLEY 100S-E65KY22C - Safety Contactor
The ALLEN BRADLEY 100S-E65KY22C is a 3-pole safety contactor engineered for critical industrial safety applications, ensuring reliable load disconnection in emergency stop and safety interlock circuits. This device integrates mechanically linked and mirror contacts to meet stringent safety standards, providing a robust solution for motor control and power switching in safety-rated machinery. It is designed for integration into control systems requiring compliance with ISO 13849-1 Performance Level e (PLe) or IEC 62061 Safety Integrity Level 3 (SIL 3).
Technical Specifications:
- SERIES/FAMILY: 100S-C Safety Contactor
- COMPONENT TYPE: Safety Contactor
- ELECTRICAL SPECS:
- RATED CURRENT: 65A (AC-3)
- OPERATIONAL VOLTAGE: Up to 690V AC
- COIL VOLTAGE: 24V DC
- MAIN CONTACTS: 3-pole, Normally Open (NO)
- AUXILIARY CONTACTS: 2 Normally Open (NO), 2 Normally Closed (NC)
- FREQUENCY: 50/60 Hz
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Compact industrial module
- MOUNTING: DIN rail or screw mount
- TERMINALS: Finger-safe screw terminals
- INTERFACE/CONTROL:
- CONTROL INPUT: DC coil activation
- FEEDBACK: Integrated auxiliary contacts for status monitoring
- SAFETY FEATURES: Mechanically linked and mirror contacts per IEC 60947-5-1
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (terminal protection)
- COOLING METHOD: Natural convection
- OPERATING TEMPERATURE: -25°C to +60°C
- COMPATIBILITY/APPLICATION:
- TARGET SYSTEMS: Emergency stop circuits, safety gates, light curtains, two-hand control
- SAFETY STANDARDS: Designed for applications requiring ISO 13849-1 PLe / Category 4 and IEC 62061 SIL 3
