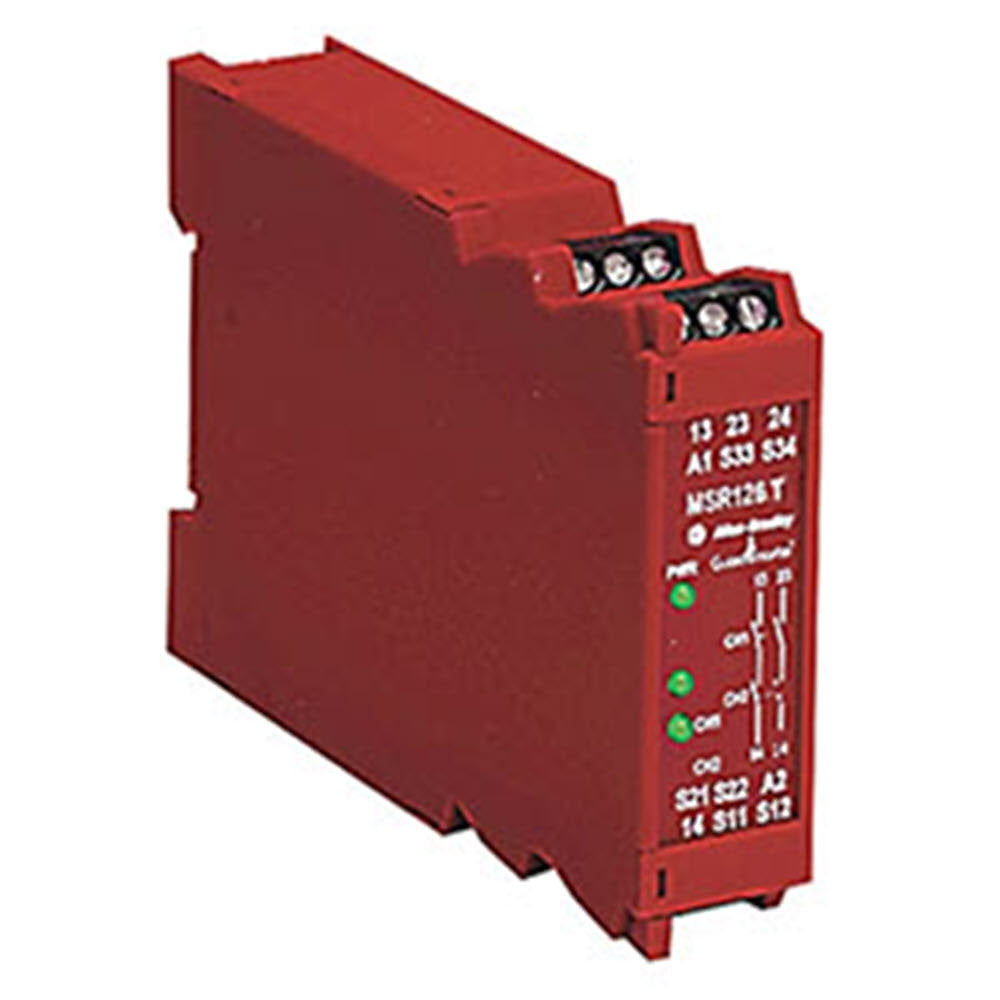

ALLEN BRADLEY 440R-N23117 - Safety Relay
This device is a compact, general-purpose safety relay from the ALLEN BRADLEY Guardmaster 440R series, engineered for monitoring safety functions in industrial control systems. It provides reliable safety circuit supervision for emergency stop buttons, safety gates, and light curtains, ensuring machine shutdown in hazardous conditions. The unit integrates directly into control panels via DIN rail mounting, offering essential safety interlocking and control for diverse automation applications.
Technical Specifications:
- SERIES/FAMILY: Guardmaster 440R Series
- COMPONENT TYPE: Safety Relay
- ELECTRICAL SPECS:
- INPUT VOLTAGE: 24V AC/DC
- SAFETY OUTPUTS: 2 Normally Open (N.O.)
- AUXILIARY OUTPUTS: 3 Normally Closed (N.C.)
- OUTPUT CURRENT RATING: 6A per output (resistive)
- MECHANICAL/PHYSICAL:
- FORM FACTOR: Compact DIN Rail Mount Module
- MOUNTING: 35mm DIN Rail
- INTERFACE/CONTROL:
- INPUT CHANNELS: Single or Dual Channel Input Monitoring
- RESET TYPE: Manual Reset
- INDICATORS: LED Status Indicators for Input, Output, and Power
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (Terminal Protection)
- OPERATING TEMPERATURE: -5°C to +55°C
- COOLING METHOD: Natural Convection
- COMPATIBILITY/APPLICATION:
- SAFETY FUNCTIONS: Emergency Stop, Safety Gate, Light Curtain, Two-Hand Control
- SAFETY STANDARDS: Conforms to EN ISO 13849-1 (up to PLe), IEC 61508 (up to SIL 3)
- TARGET SYSTEMS: Industrial Machinery, Robotics, Process Control Systems
