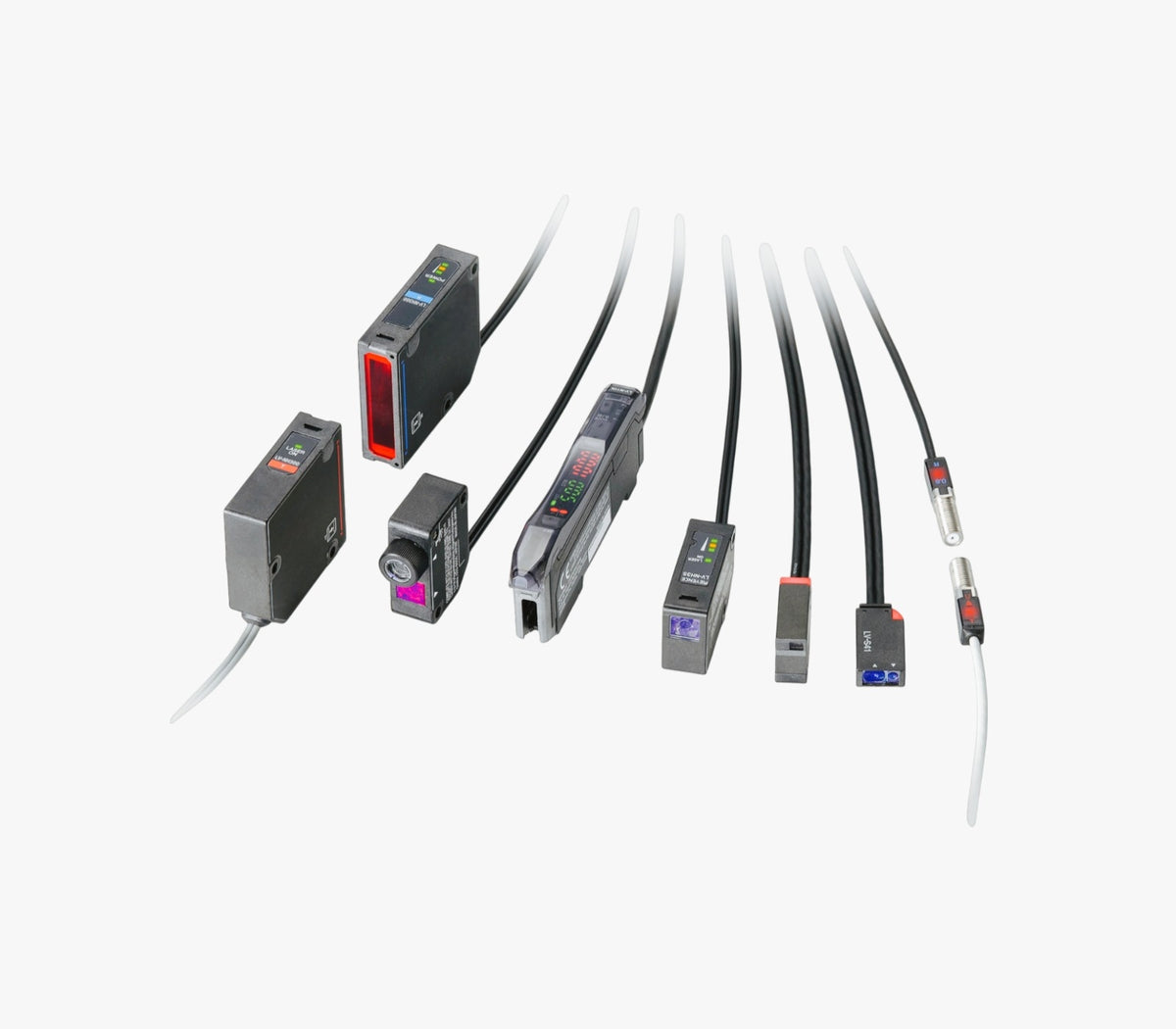

KEYENCE CORP PZ-M71 - Photoelectric Sensor
The KEYENCE PZ-M71 is a compact diffuse-reflective photoelectric sensor from the PZ-M series, engineered for precise object detection in industrial environments. It utilizes a red LED light source and provides an NPN open collector output, suitable for integration into control systems requiring reliable presence sensing, part counting, and position verification. This sensor is designed for applications in manufacturing, packaging, and material handling systems.
Technical Specifications:
- SERIES/FAMILY: PZ-M Series
- COMPONENT TYPE: Photoelectric Sensor, Diffuse-Reflective
- ELECTRICAL SPECS:
- POWER SUPPLY: 12 to 24 VDC +/- 10%
- CURRENT CONSUMPTION: 30 mA max
- OUTPUT TYPE: NPN Open Collector
- OUTPUT CURRENT: 100 mA max (30 VDC max)
- RESPONSE TIME: 0.5 ms max
- MECHANICAL/PHYSICAL:
- SENSING METHOD: Diffuse-Reflective
- SENSING DISTANCE: 5 to 200 mm (adjustable via potentiometer)
- LIGHT SOURCE: Red LED (680 nm)
- HOUSING MATERIAL: PBT
- LENS MATERIAL: Polycarbonate
- CONNECTION: Pre-wired cable (2 meters)
- INTERFACE/CONTROL:
- OUTPUT MODE: Selectable Light-ON / Dark-ON
- INDICATORS: Operation (Orange LED), Stability (Green LED)
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP67
- AMBIENT TEMPERATURE: -20 to +55 degrees C (non-freezing)
- AMBIENT HUMIDITY: 35 to 85% RH (non-condensing)
- MOUNTING STYLE: M3 screw mounting (bracket dependent)
- COMPATIBILITY/APPLICATION:
- TARGET SYSTEMS: Industrial automation, packaging machinery, material handling, assembly lines
- FUNCTION: Object presence detection, part counting, position sensing, process control
