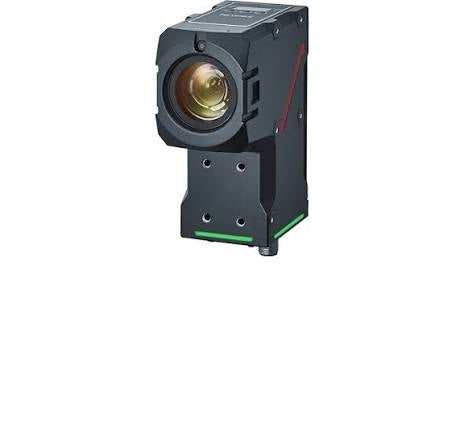

KEYENCE CORP VS-C2500MX - Industrial Vision System Camera
The KEYENCE VS-C2500MX is a compact, high-resolution industrial vision system camera engineered for precision image acquisition in automated inspection and quality control applications. This digital camera integrates a 2.5-megapixel CMOS sensor with a global shutter, providing distortion-free imaging of fast-moving targets. It is designed for seamless integration into machine vision platforms requiring reliable data capture for defect detection, measurement, and robotic guidance.
Technical Specifications:
- SERIES/FAMILY: VS Series
- COMPONENT TYPE: Industrial Vision System Camera
- ELECTRICAL SPECS:
- NOMINAL VOLTAGE: 5VDC (USB 3.0 Bus Power)
- POWER CONSUMPTION: Typically 2.5W
- MECHANICAL/PHYSICAL:
- SENSOR TYPE: 1/1.8-inch CMOS
- RESOLUTION: 2.5 Megapixels (2432 x 2040 pixels)
- SHUTTER TYPE: Global Shutter
- FRAME RATE: Up to 30 frames per second (at full resolution)
- LENS MOUNT: C-mount
- FORM FACTOR: Compact Industrial Housing
- INTERFACE/CONTROL:
- DATA INTERFACE: USB 3.0
- I/O: Trigger Input, Strobe Output (via dedicated cable/interface unit)
- FEEDBACK: Real-time Digital Image Stream
- ENVIRONMENTAL/MOUNTING:
- IP RATING: IP20 (Standard for internal cabinet or protected environments)
- COOLING METHOD: Passive Convection
- MOUNTING STYLE: Standard M3/M4 Threaded Holes
- COMPATIBILITY/APPLICATION:
- TARGET SYSTEMS: KEYENCE VS Series Vision Controllers, PC-based Vision Systems
- APPLICATIONS: Automated Optical Inspection (AOI), Quality Assurance, Part Presence/Absence Verification, Robotic Pick-and-Place, Dimensional Measurement, Defect Detection
